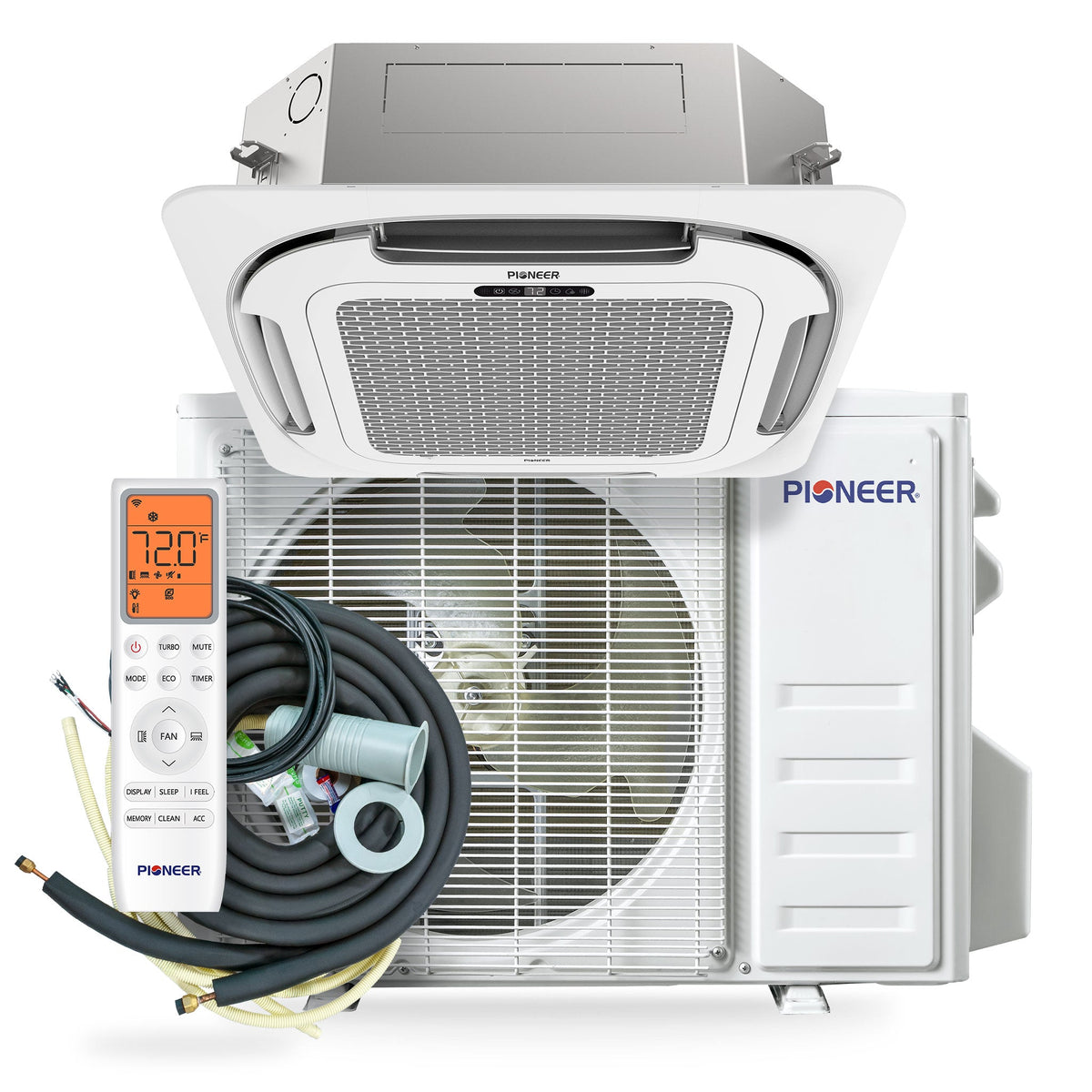

Pioneer Quantum Ultra 23,000 BTU 230V 8-Way Ceiling Cassette Heat Pump

Pioneer Quantum Ultra 23,000 BTU 230V 8-Way Ceiling Cassette Heat Pump

$2,288.00
$3,269.00 $2,288.00
Sale Sold out
Shipping calculated at checkout.

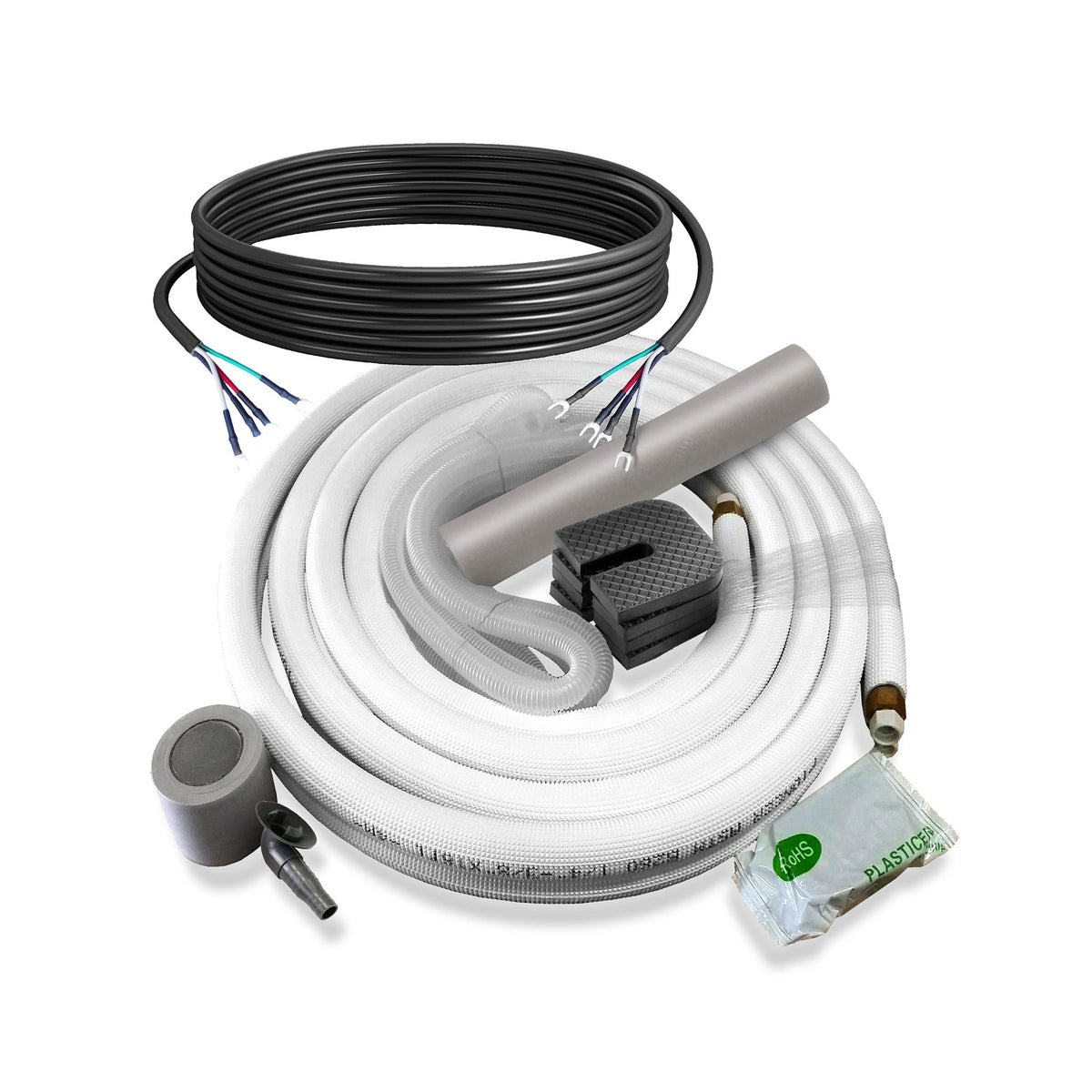

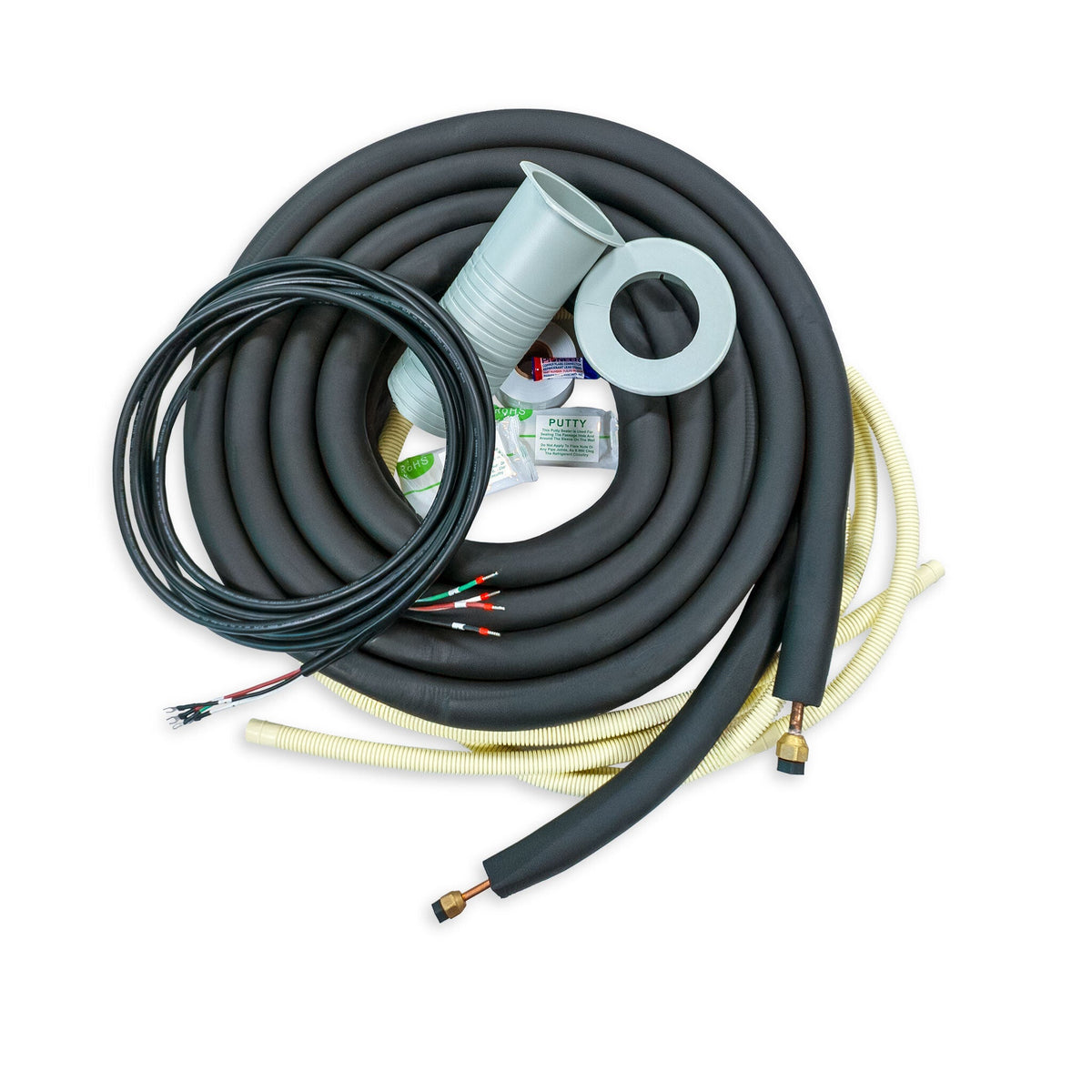

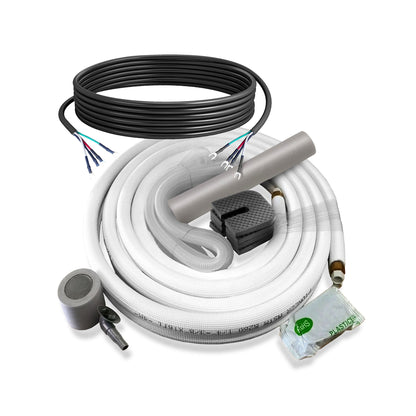

Include System Installation Kit
Installation Kit Length
  • Hand-curated edit
  • Tracked US delivery
  • Clear return terms

Ships in 0–3 business days · delivery in 5–12 days after shipping · 30-day returns on eligible items

View full details

Details

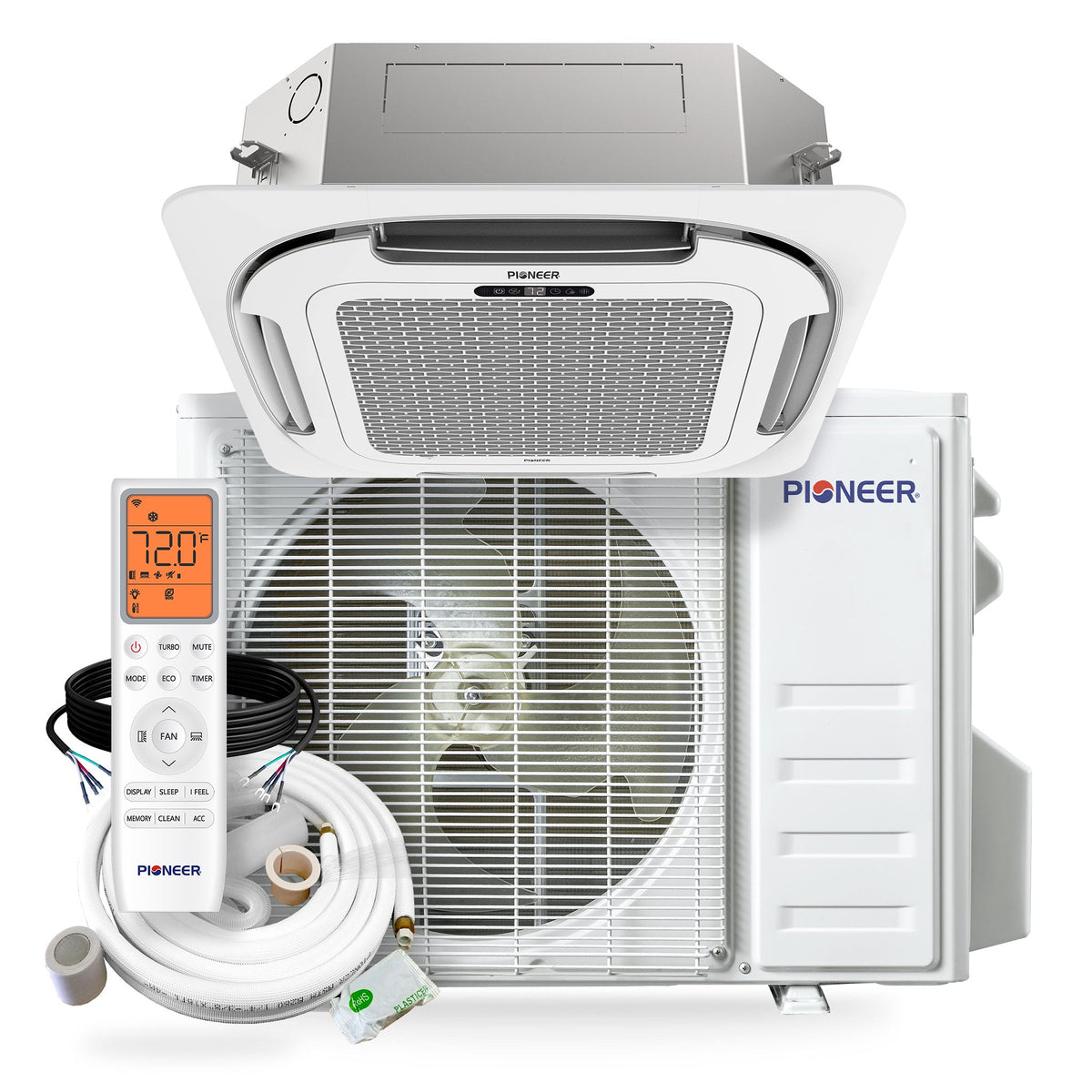

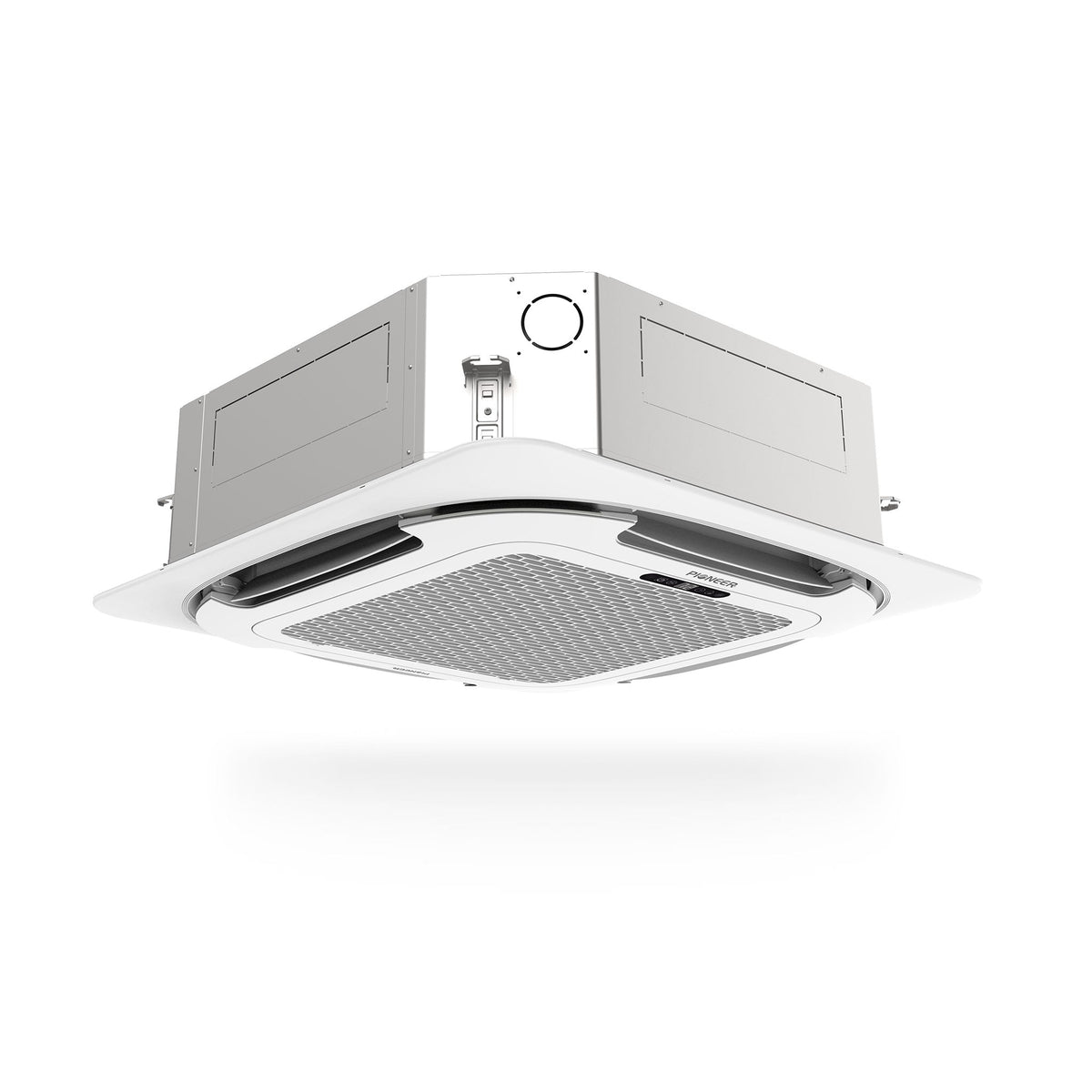

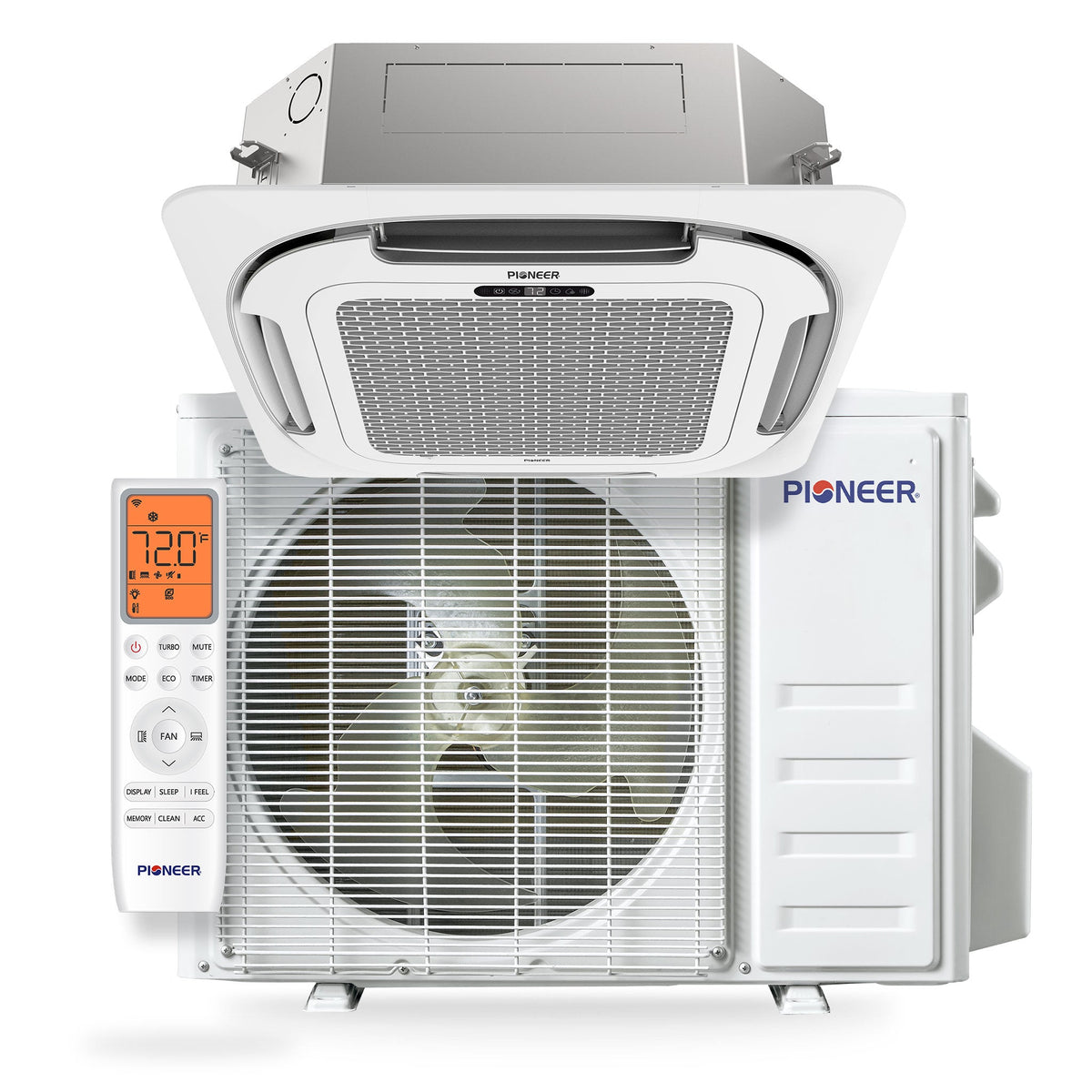

The Pioneer Quantum Ultra 23,000 BTU ceiling cassette mini split sits flush in the ceiling and sends air out in eight directions for even coverage across a living room, open kitchen, office or retail space. This 230V ductless heat pump full set is rated 22.5 SEER2 and comes with a decorative panel for a finished look.

Key Features

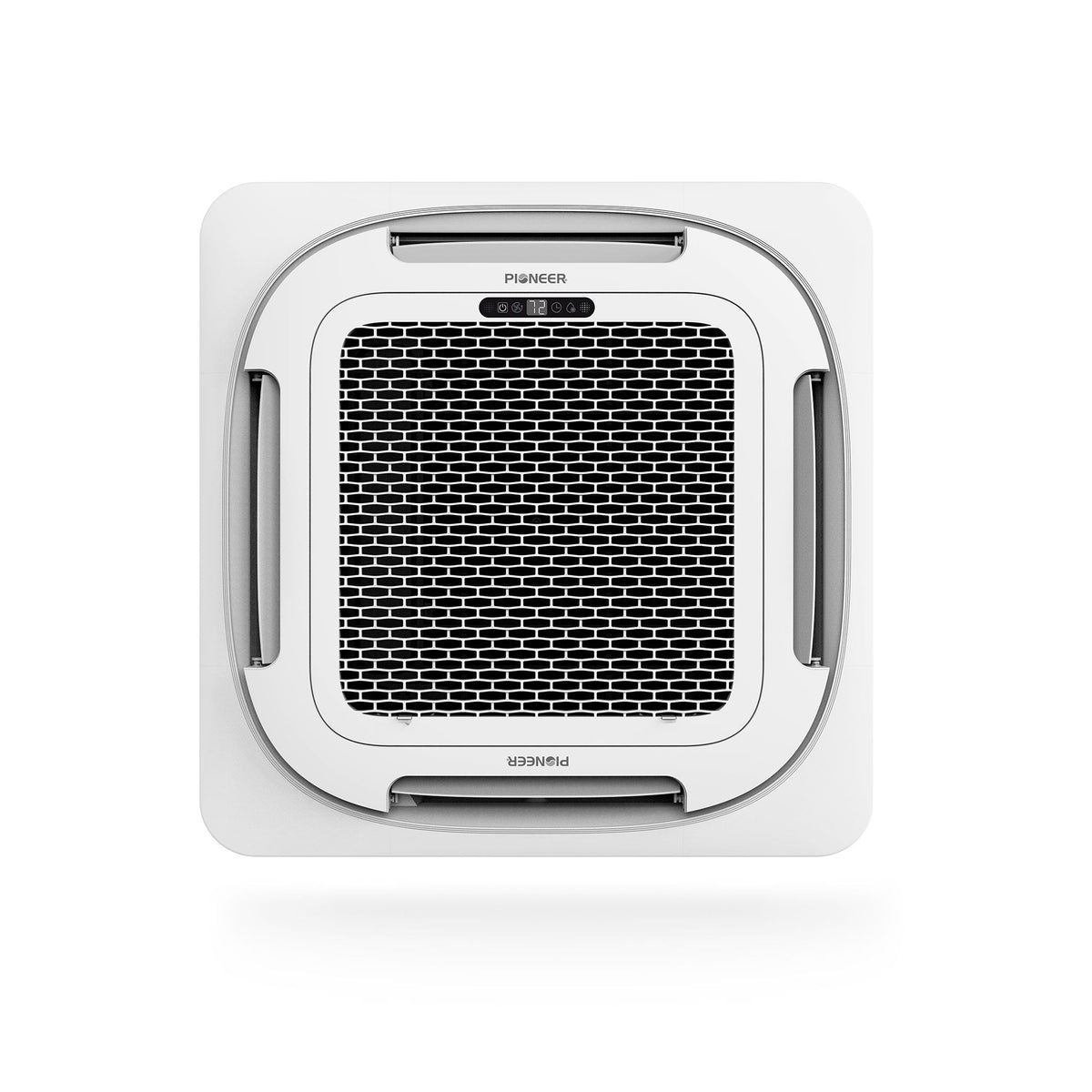

  • Eight-way airflow: The recessed cassette spreads air widely with motorized louvers.
  • Heating and cooling: 23,000 BTU/h of cooling and 25,000 BTU/h of heating.
  • Ultra low ambient range: Heats down to -13°F and cools up to 131°F outdoors.
  • High efficiency: 22.5 SEER2, 11.7 EER2 and 10.4 HSPF2.

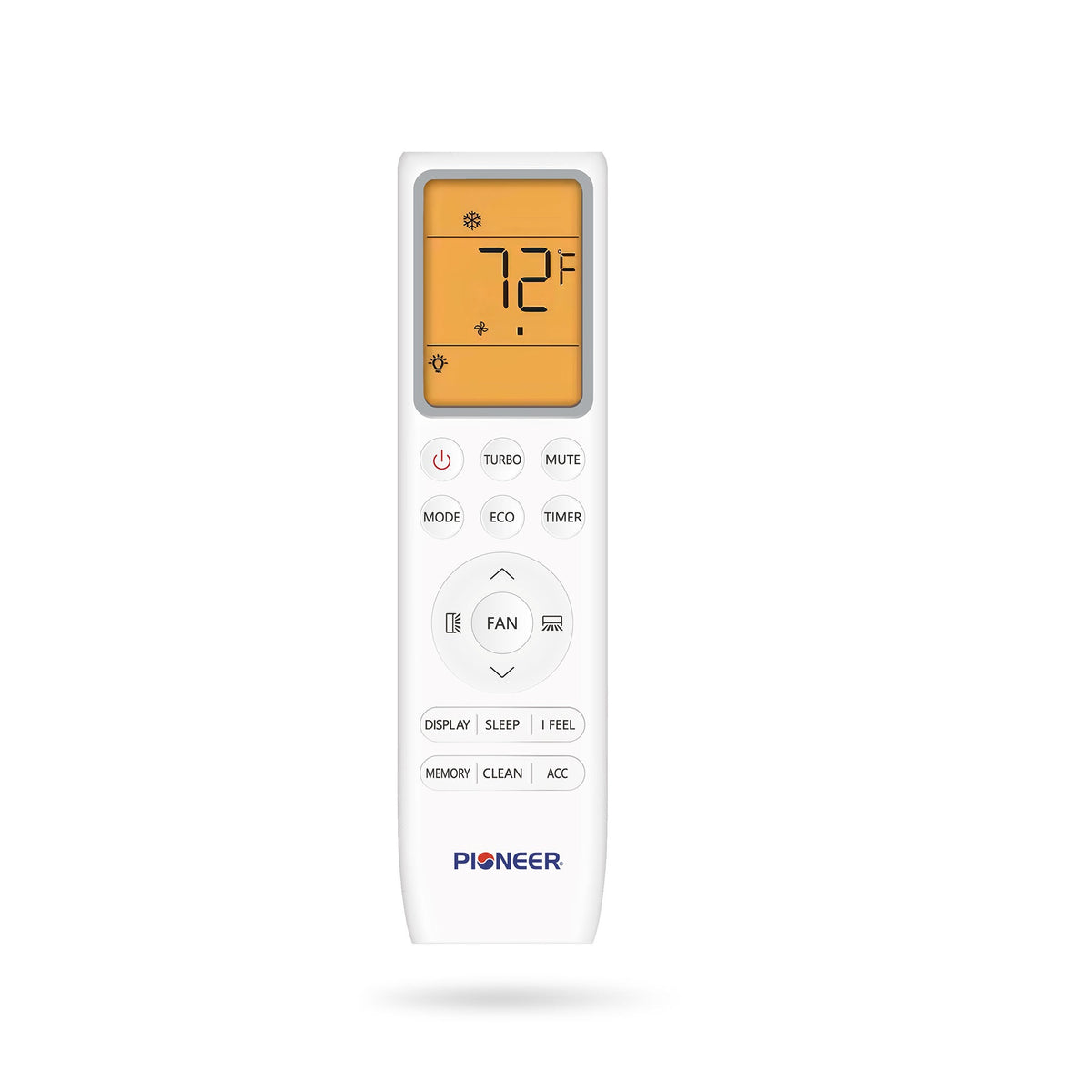

  • Smart remote: ECO, SLEEP, TURBO, timer, self-clean, MEMORY and IFEEL, plus washable filters and dual drainage ports.

Specifications

Cooling / Heating Capacity 23,000 / 25,000 BTU/h
Efficiency 22.5 SEER2, 11.7 EER2, 10.4 HSPF2
Power Supply 208-230V, 60Hz, 1Ph; 25A double-pole breaker
Recommended Room Size 750-1,000 sq ft
Indoor Unit Style 8-way ceiling recessed cassette
Refrigerant R454b, factory-precharged
Indoor Sound Level 34-50 dB(A)
Cassette Body (W x D x H) 33-1/8 x 33-3/4 x 10-3/4 in.
Decorative Panel (W x D x H) 37-3/8 x 37-3/8 x 2-7/8 in.
Piping 5/8 in. gas / 1/4 in. liquid
