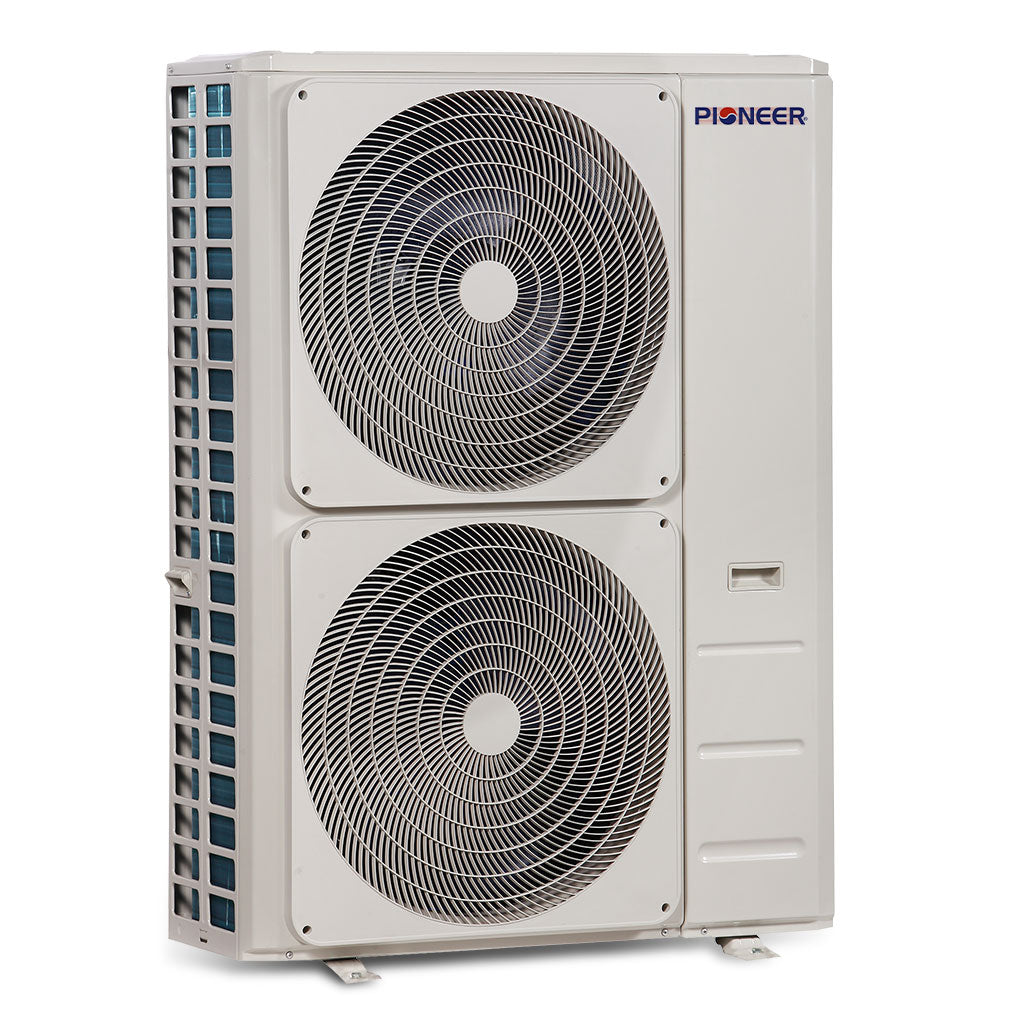

• Pioneer Quantum Ultra 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump
  • Pioneer Quantum Ultra 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump – view 2
  • Pioneer Quantum Ultra 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump – view 3
  • Pioneer Quantum Ultra 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump – view 4
  • Pioneer Quantum Ultra 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump – view 5
  • Pioneer Quantum Ultra 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump – view 6
1 6

Pioneer Quantum Ultra 48,000 BTU 230V 4-Way Ceiling Cassette Heat Pump

Pioneer Quantum Ultra 48,000 BTU 230V 4-Way Ceiling Cassette Heat Pump

$5,028.00
$7,199.00 $5,028.00
Sale Sold out
Shipping calculated at checkout.

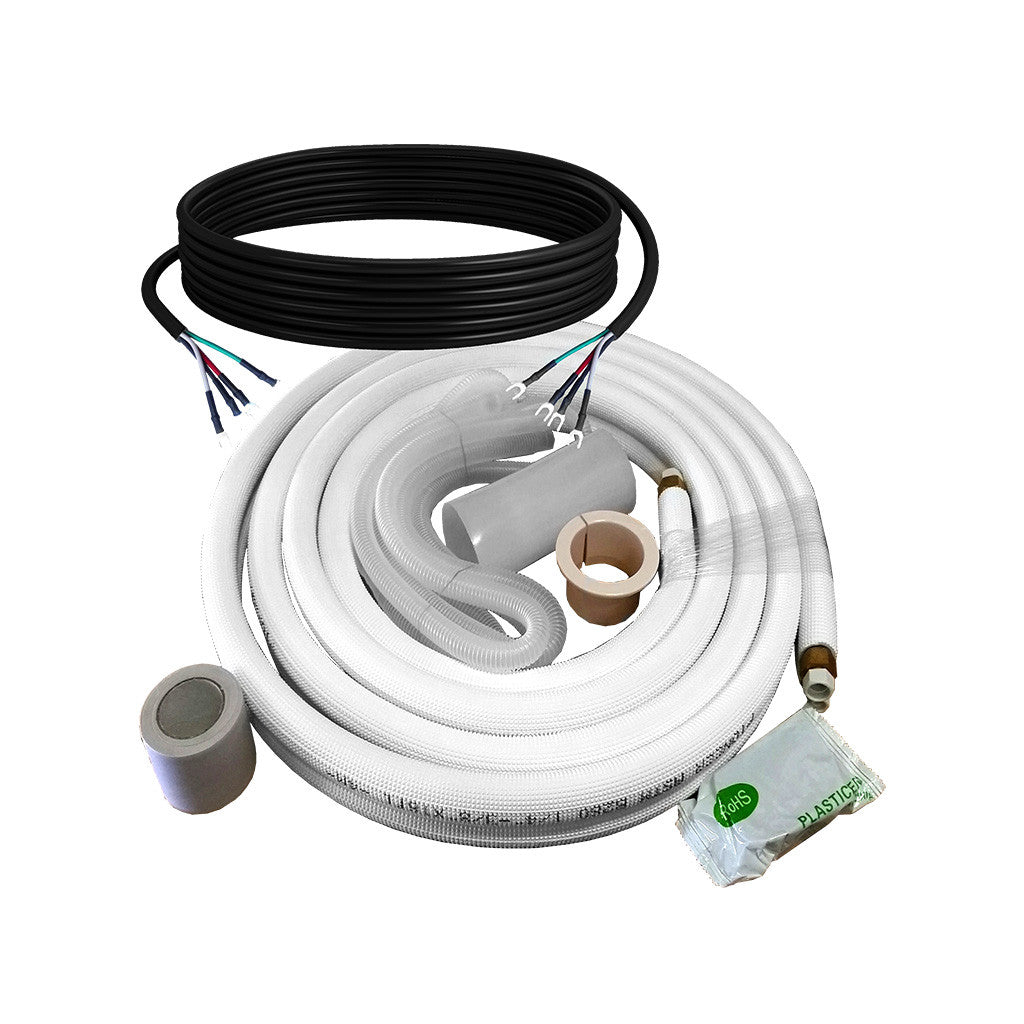

Installation Kit Options
  • Hand-curated edit
  • Tracked US delivery
  • Clear return terms

Ships in 0–3 business days · delivery in 5–12 days after shipping · 30-day returns on eligible items

View full details

Details

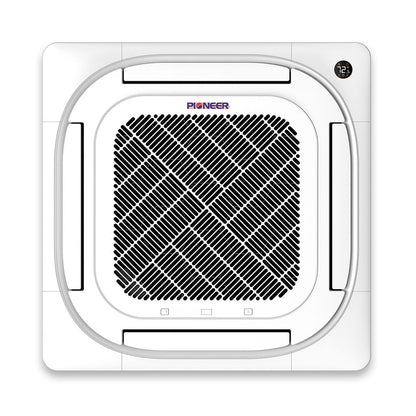

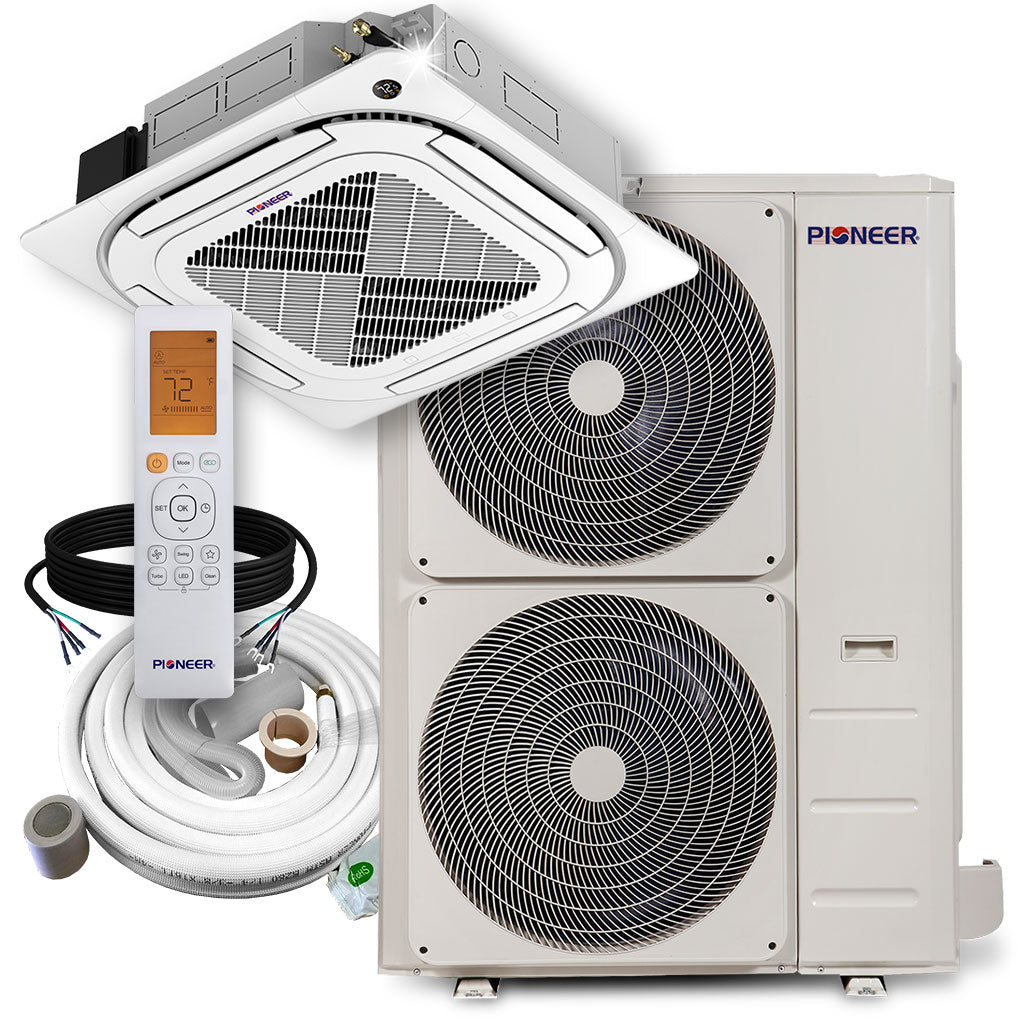

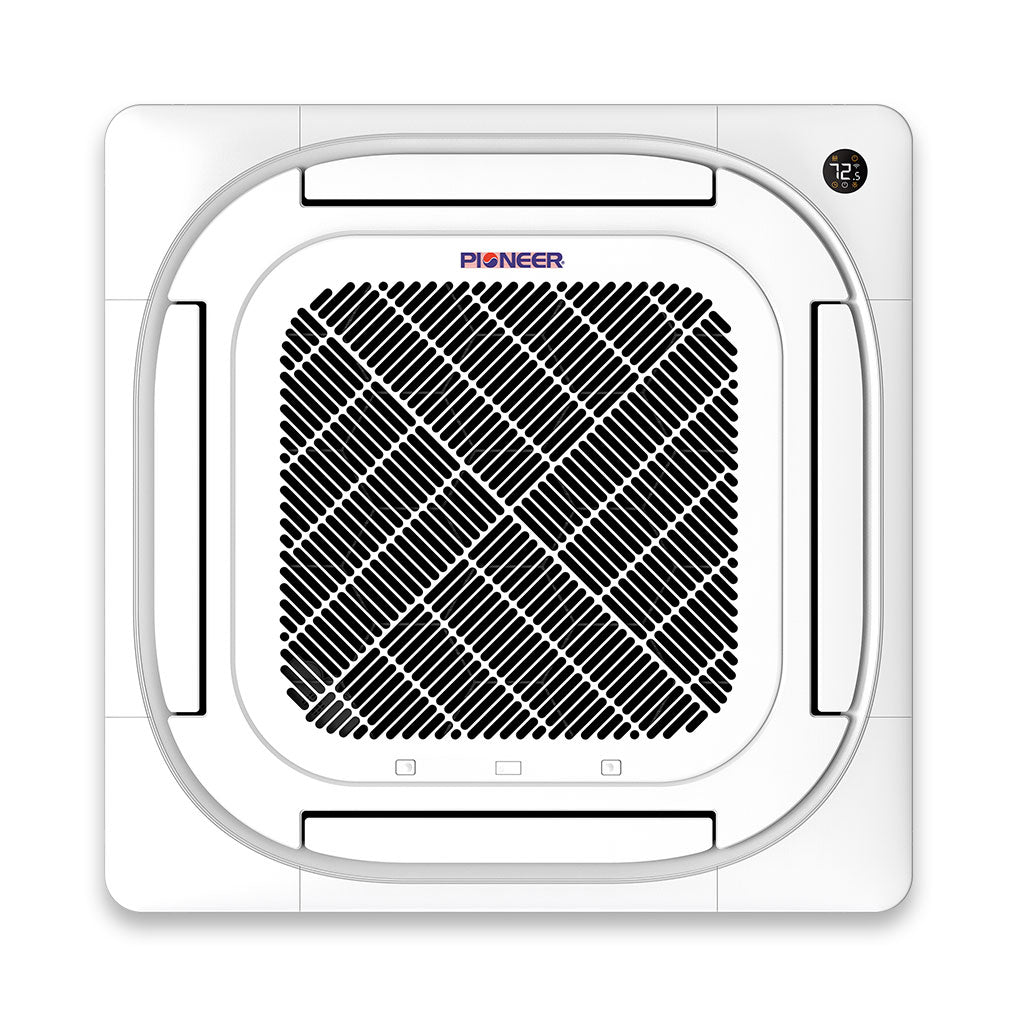

The Pioneer Quantum Ultra 48,000 BTU ceiling cassette mini split recesses into the ceiling and spreads conditioned air in four directions, making it a clean, low-profile choice for large open living areas, commercial spaces and finished lower levels. This 230V ductless heat pump runs on a variable-speed inverter rated at 19 SEER2 and includes a decorative grille panel.

Key Features

  • Four-way airflow: A recessed cassette distributes air evenly across a large room with motorized louvers.
  • Big capacity: 48,000 BTU/h of cooling and 50,000 BTU/h of heating.
  • Extended operating range: Heats in outdoor temperatures as low as -13°F and cools up to 131°F.
  • Efficient inverter: 19.0 SEER2, 9.5 EER2 and 9.9 HSPF2.

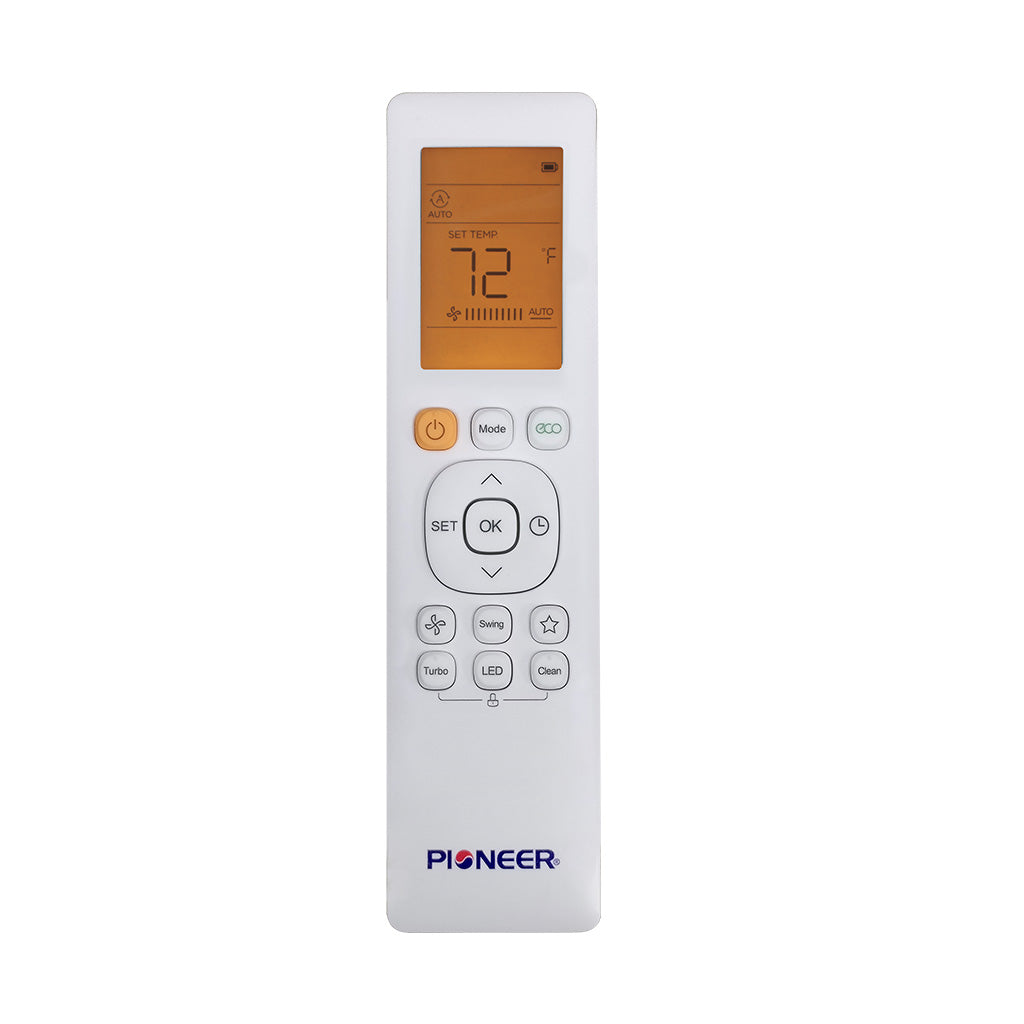

  • Comfort remote: ECO, SLEEP, TURBO, timer, self-clean, MEMORY and FOLLOW ME temperature sensing.
  • Easy service: Washable, reusable filters and dual drainage ports.

Specifications

Cooling / Heating Capacity 48,000 / 50,000 BTU/h
Efficiency 19.0 SEER2, 9.5 EER2, 9.9 HSPF2
Power Supply 208-230V, 60Hz, 1Ph; 40A double-pole breaker
Recommended Room Size 1,400-1,800 sq ft
Indoor Unit Style 4-way ceiling recessed cassette
Refrigerant R454b, factory-precharged
Indoor Sound Level 38-56 dB(A)
Cassette Body (W x D x H) 32-5/8 x 32-5/8 x 11-3/8 in.
Decorative Panel (W x D x H) 37-3/8 x 37-3/8 x 2-1/8 in.
Piping 3/4 in. gas / 3/8 in. liquid
