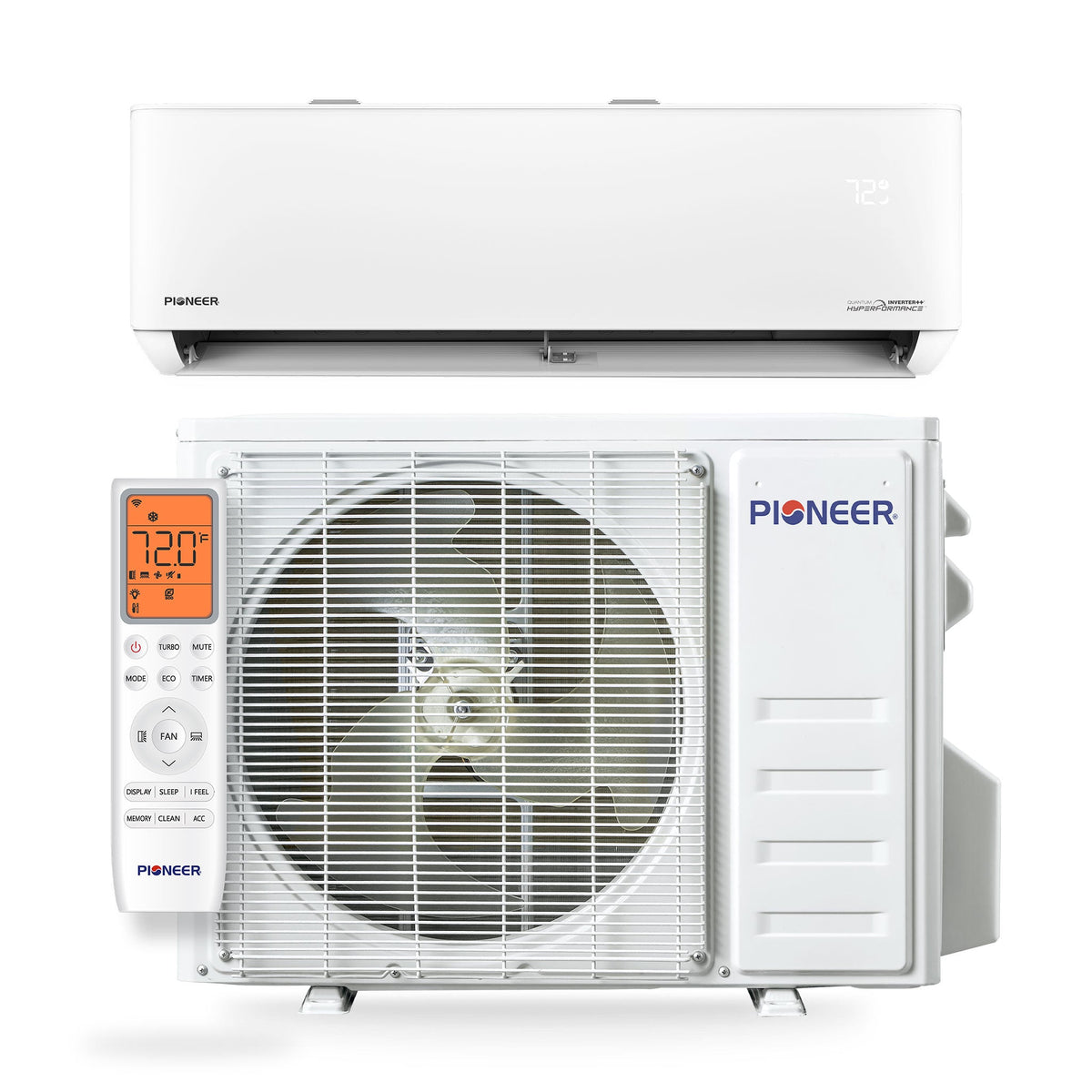

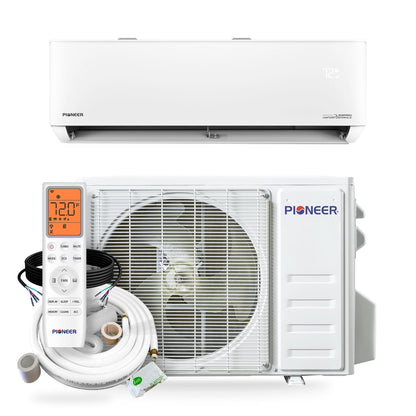

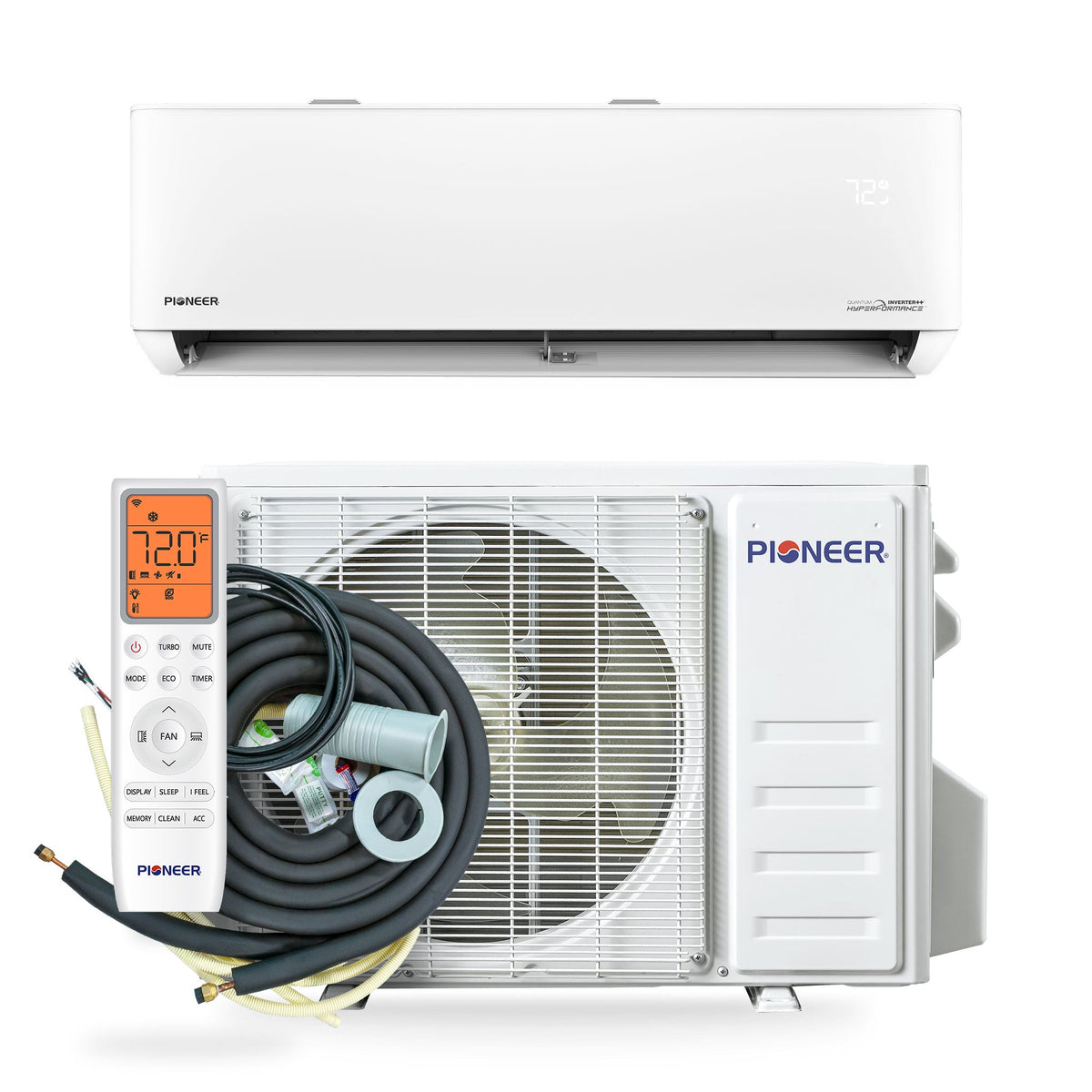

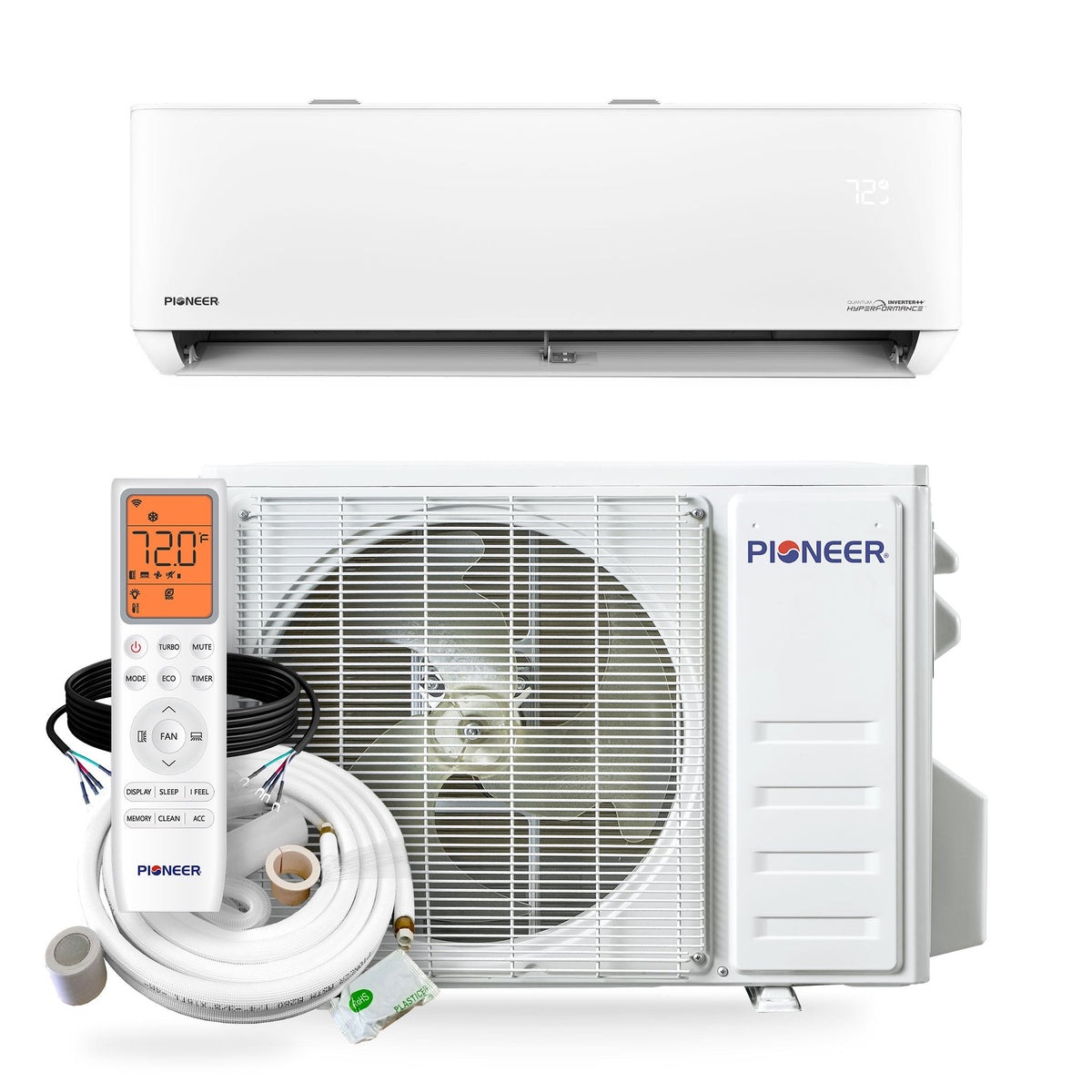

Pioneer® Quantum Hyperformance™ 24,000 BTU 22.5 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set

Pioneer® Quantum Hyperformance™ 24,000 BTU 22.5 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set

$2,278.00
$3,249.00 $2,278.00
Sale Sold out
Shipping calculated at checkout.

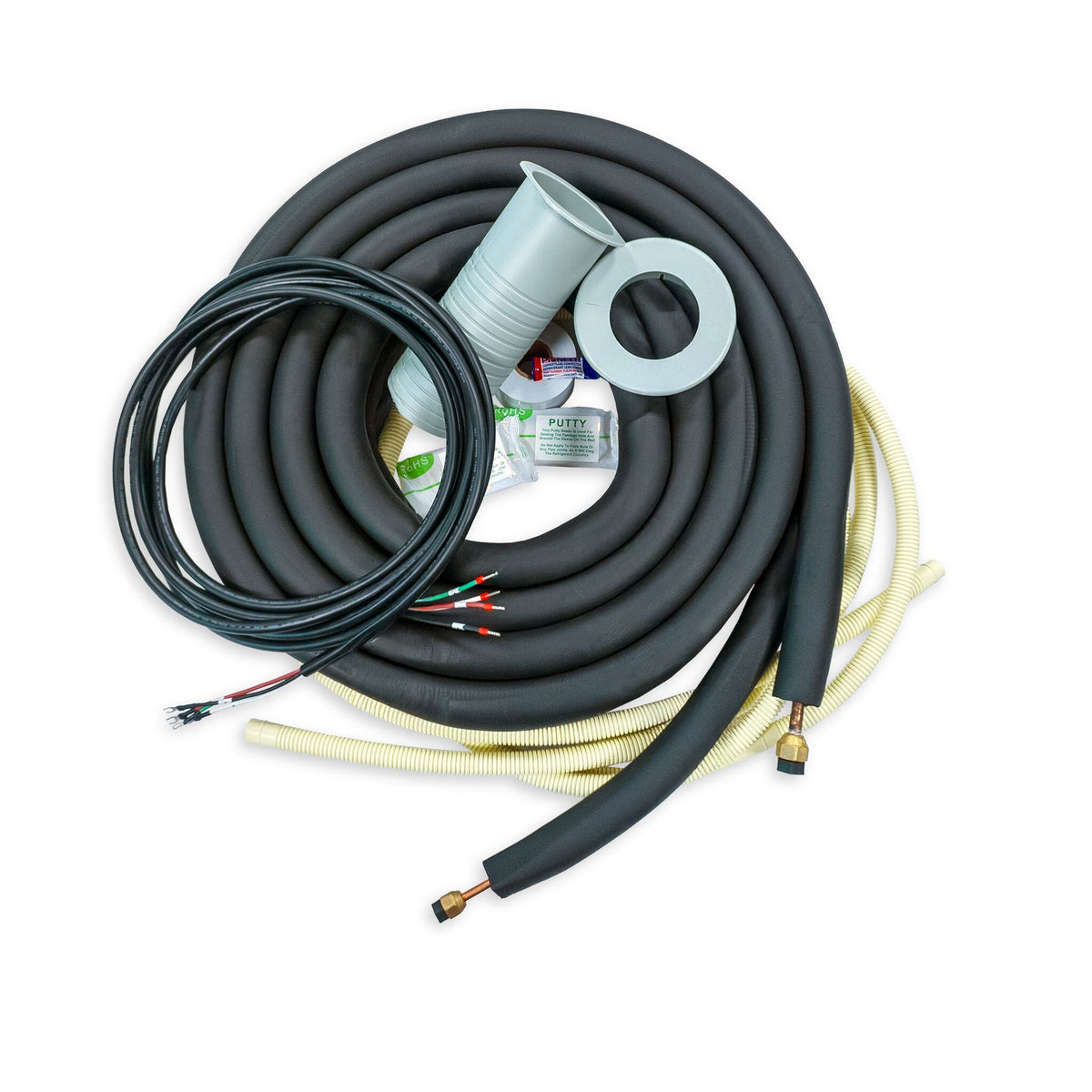

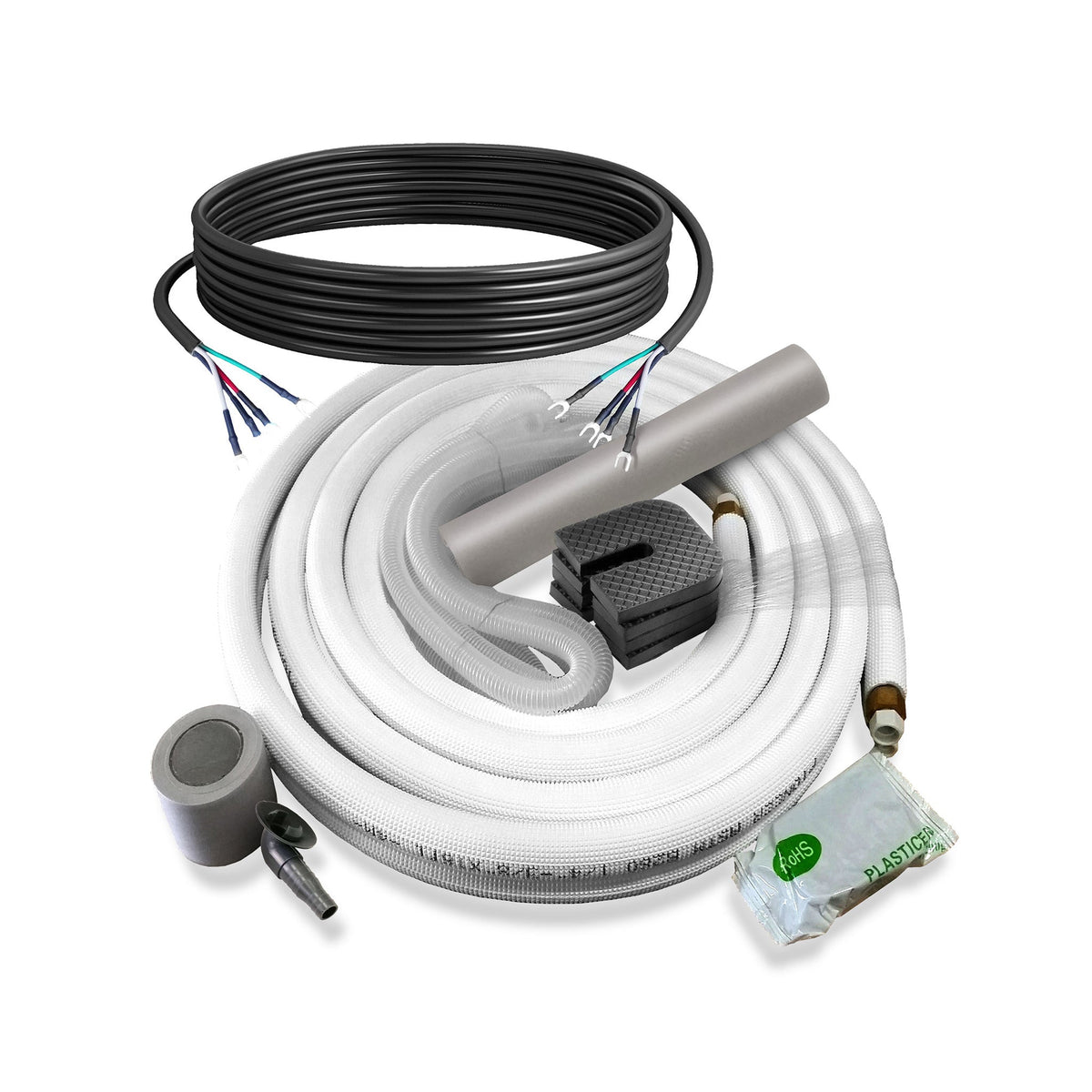

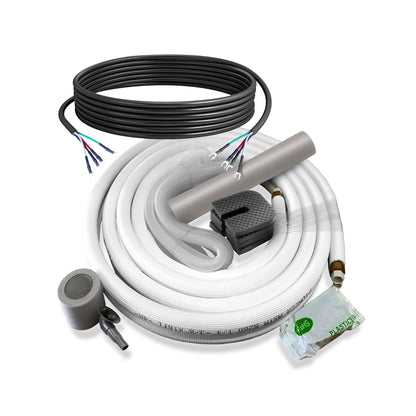

Include System Installation Kit
Installation Kit Length
  • Hand-curated edit
  • Tracked US delivery
  • Clear return terms

Ships in 0–3 business days · delivery in 5–12 days after shipping · 30-day returns on eligible items

View full details

Details

Summary

  • Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 24,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 24,000 BTU/H with 10.0 HSPF2 / 3.3 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System

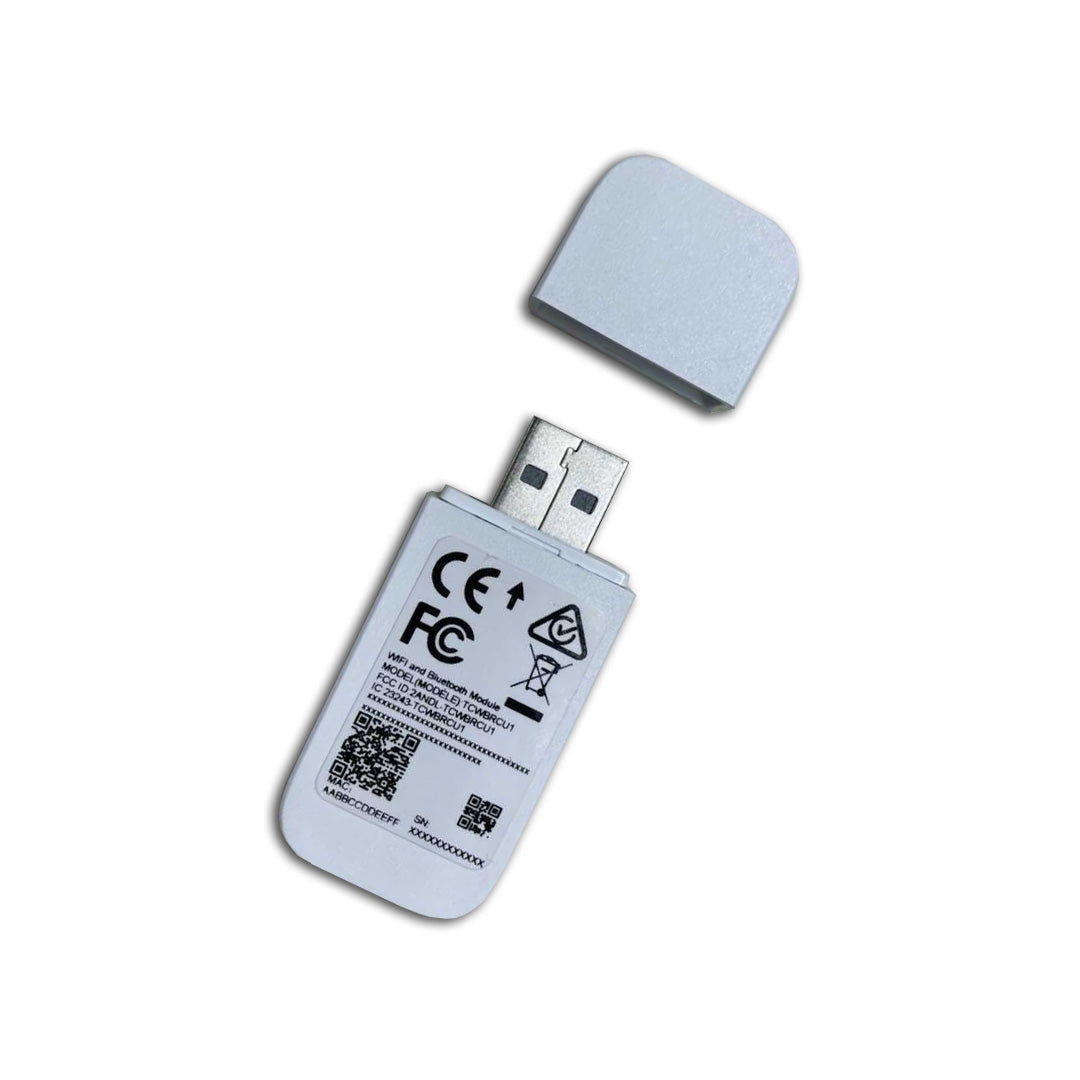

  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

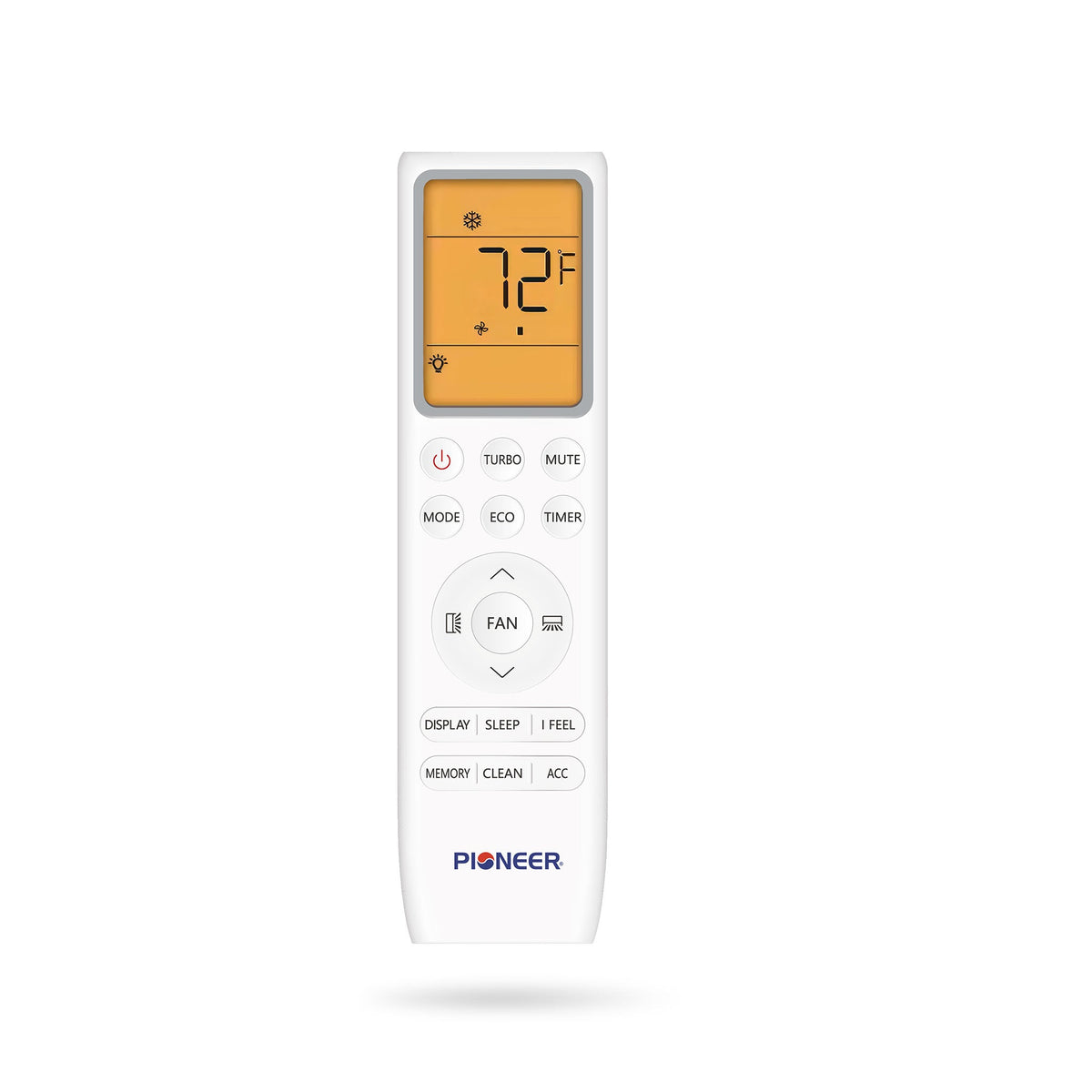

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 24,000 BTU/h
    • Cooling Capacity Range: 4,800~25,200 BTU/h
    • Cooling SEER2: 22.5 BTU/W.h
    • Cooling EER2: 11.7 BTU/W.h
    • Heating Rated Capacity: 24,000 BTU/h
    • Heating Capacity Range: 4,800~26,900 BTU/h
    • Heating HSPF2 (Region IV/V): 10.0 / 8.6 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.3 / 1.8 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 750~1,000 sq ft
    • Minimum Room Size: 63 sq ft
    • Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 217048757

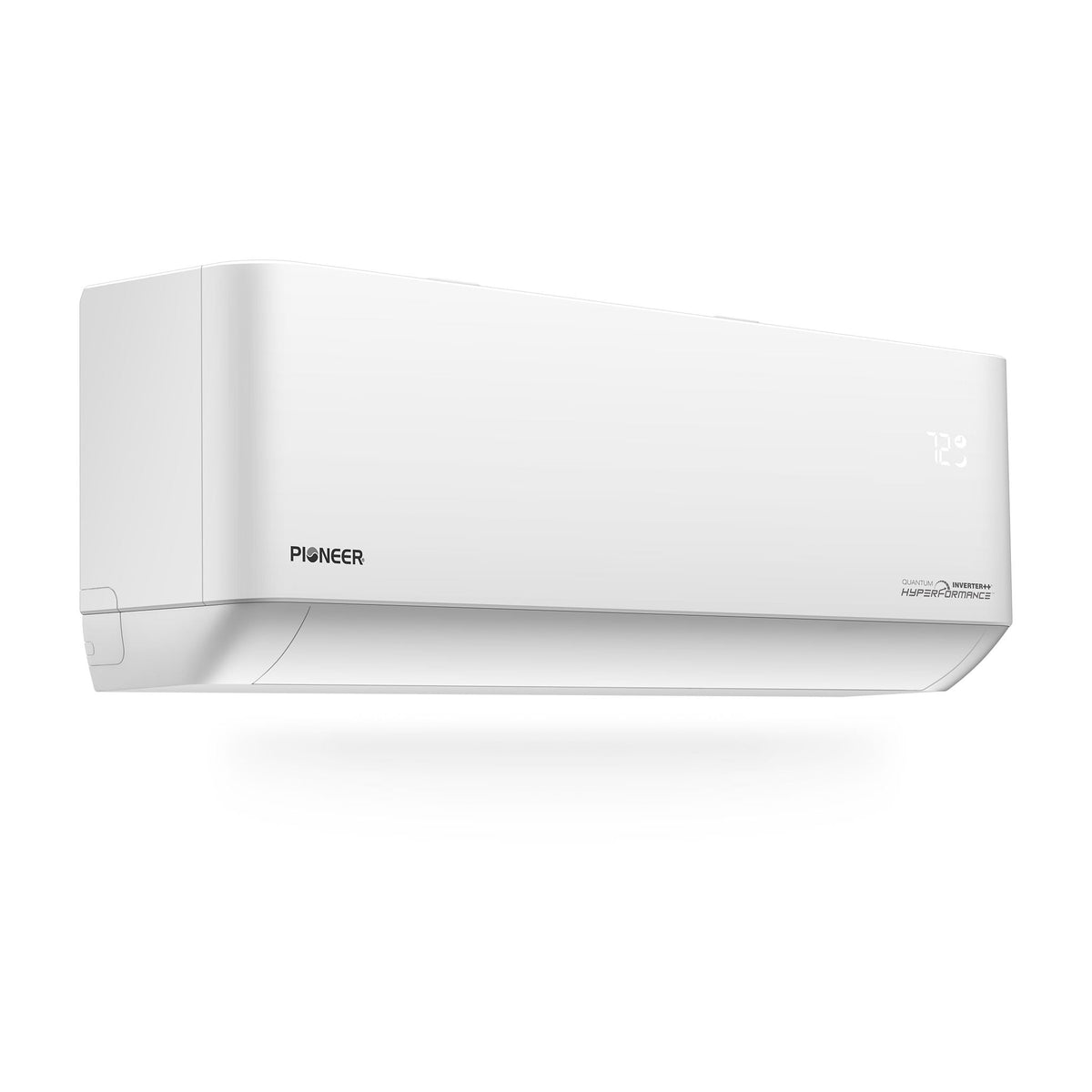

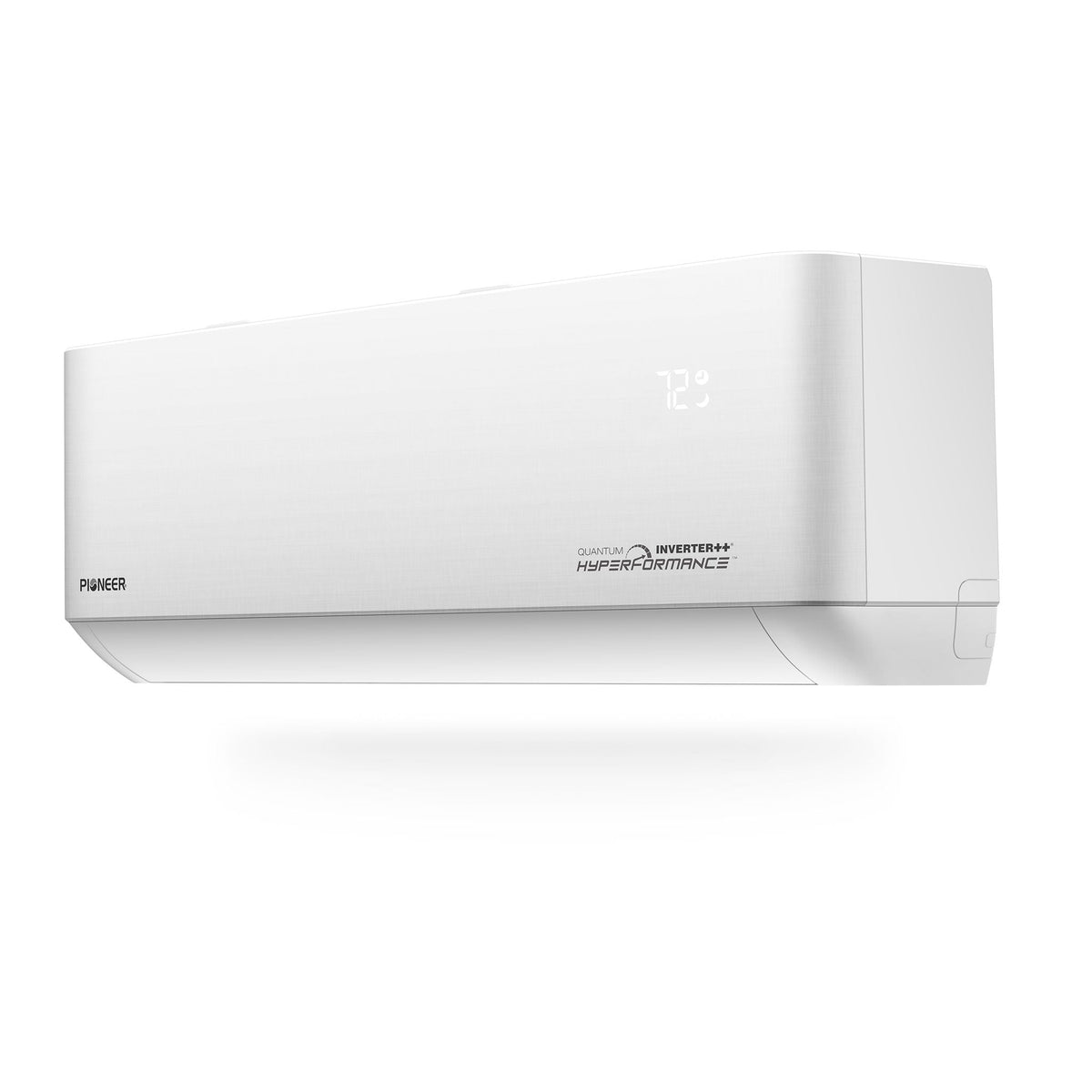

  • Indoor Unit
    • Part Number: WT024GLSI25HLH
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 47 / 42 / 37 / 32 dB(A)
    • Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13"-1/8 Inches
    • Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
    • Net / Gross Weight: 30.9 / 35.3 lbs

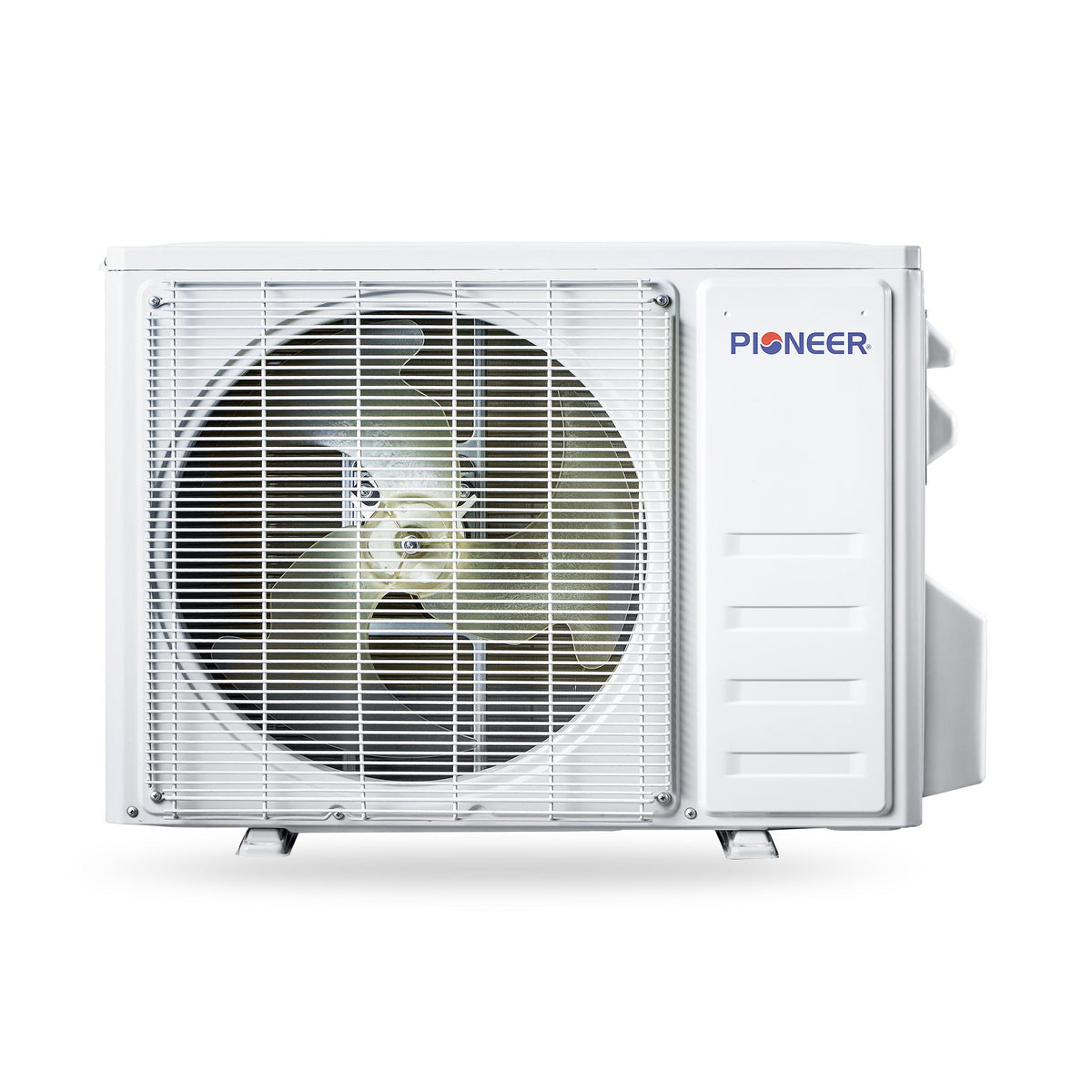

  • Outdoor Unit
    • Part Number: YN024GLSI25RPH
    • Breaker Needed: 30A (double-pole)
    • Sound Level: 61 dB(A)
    • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
    • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
    • Net / Gross Weight: 108.0 / 116.8 lbs

Dimension Chart

43⅛ 8¾ 13⅛ 38½ 16⅝ 31⅝ 2¼ ¾ 8½
