Pioneer Quantum Ultra 48,000 BTU 230V Slim-Duct Ceiling Concealed Mini-Split

Pioneer Quantum Ultra 48,000 BTU 230V Slim-Duct Ceiling Concealed Mini-Split

$5,068.00
$7,259.00 $5,068.00
Sale Sold out
Shipping calculated at checkout.

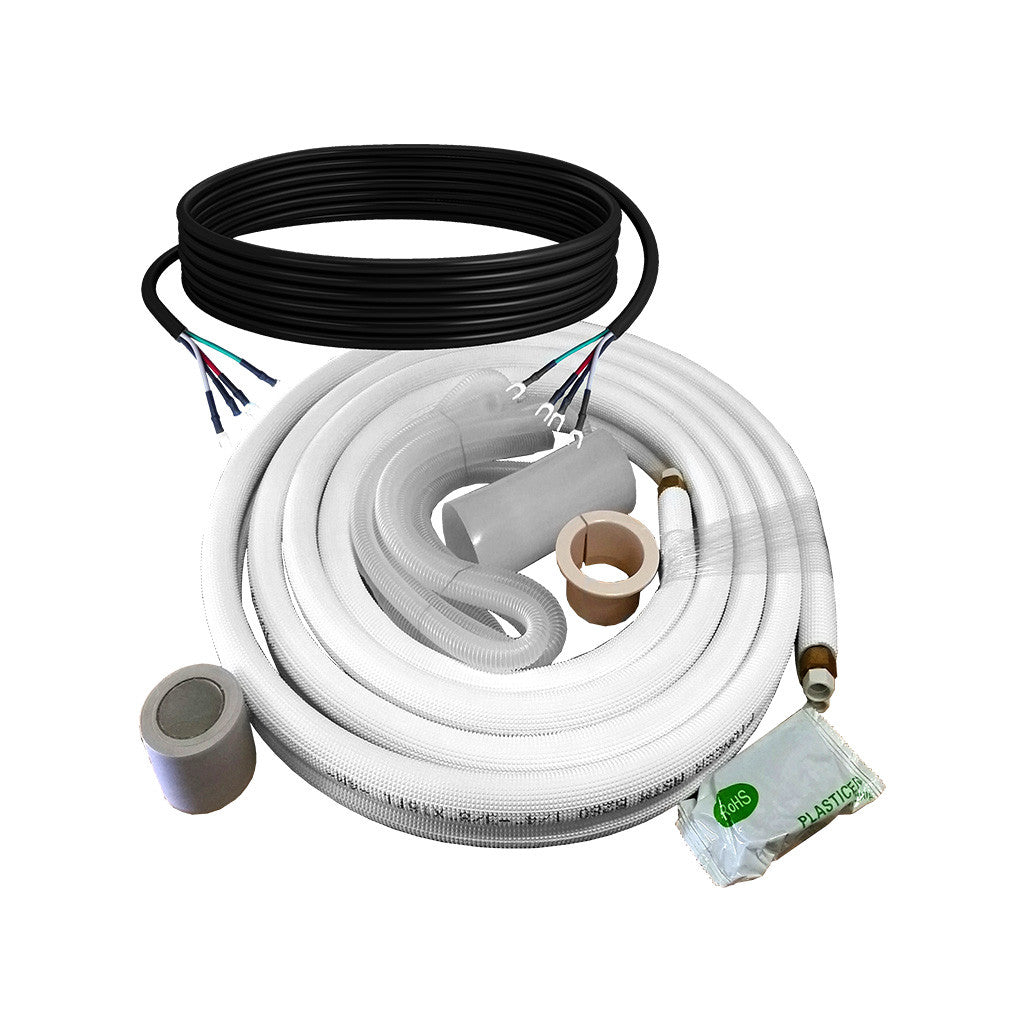

Installation Kit Options
  • Hand-curated edit
  • Tracked US delivery
  • Clear return terms

Ships in 0–3 business days · delivery in 5–12 days after shipping · 30-day returns on eligible items

View full details

Details

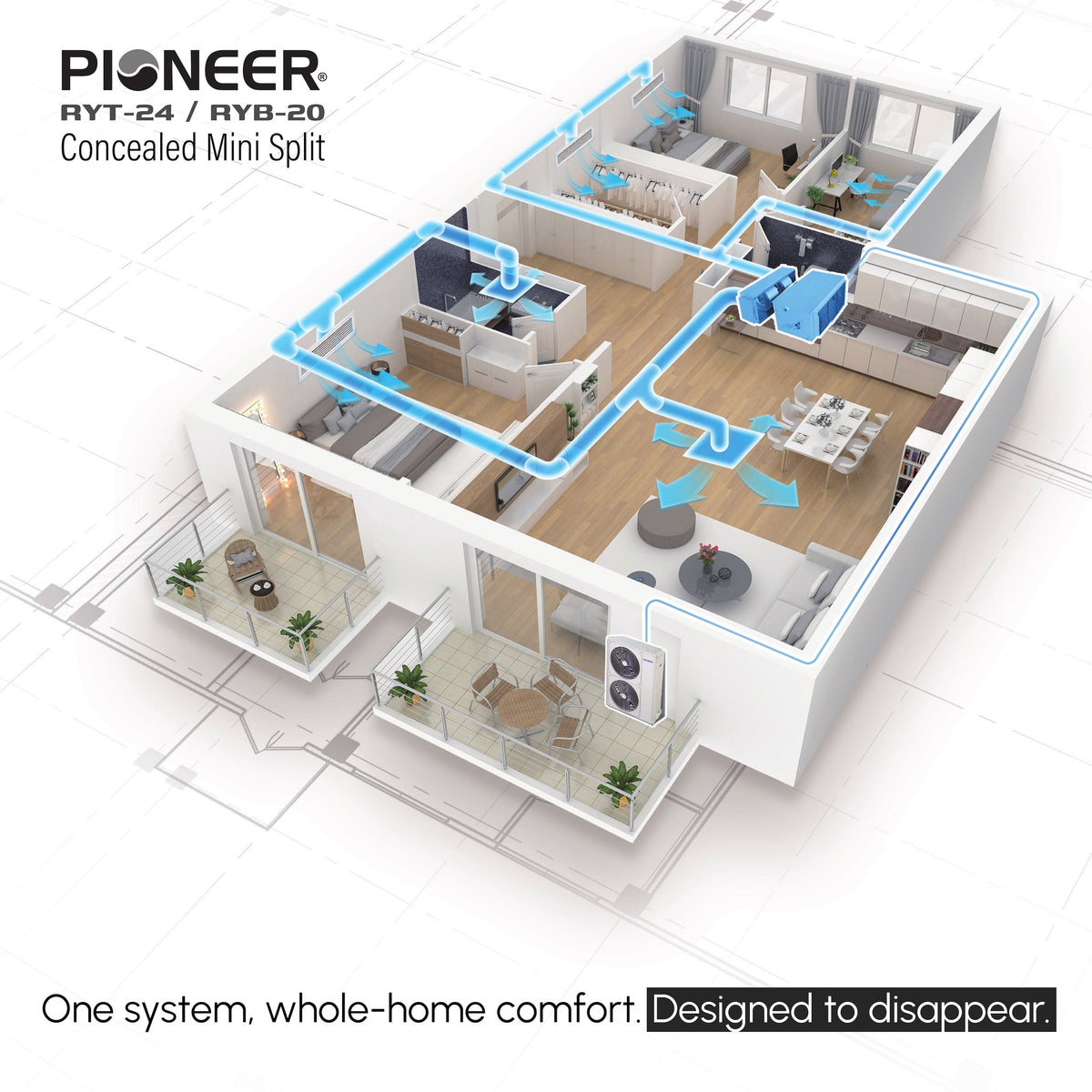

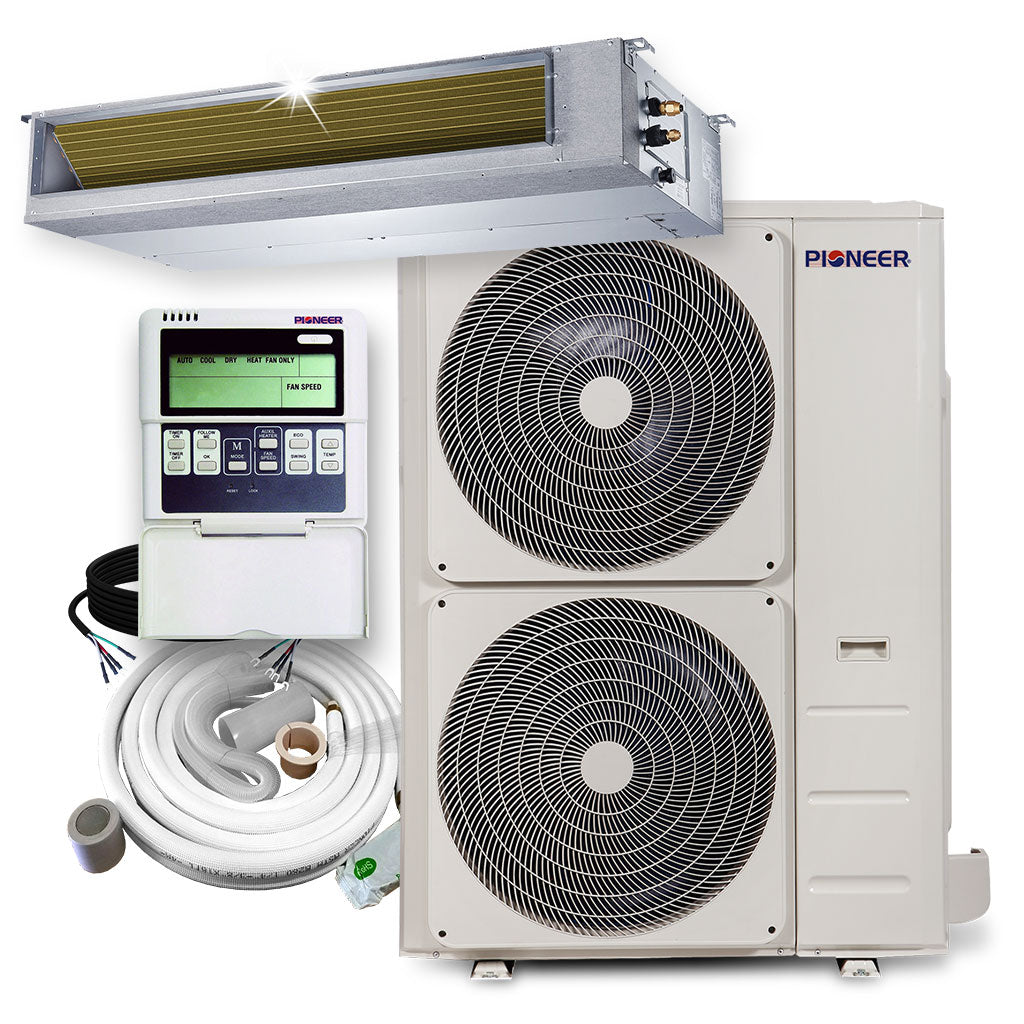

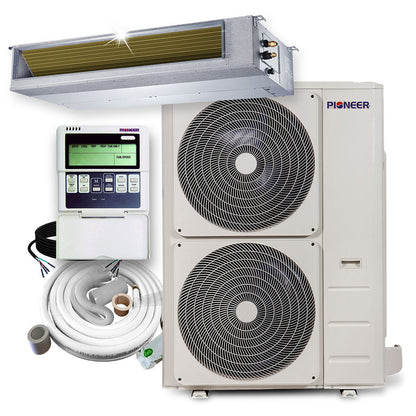

The Pioneer Quantum Ultra 48,000 BTU slim-duct mini split conceals a low-profile air handler in the ceiling and distributes air through ductwork to cool and heat large homes, open floor plans or light commercial spaces. This 230V inverter heat pump full set keeps equipment out of sight while delivering whole-area comfort.

Key Features

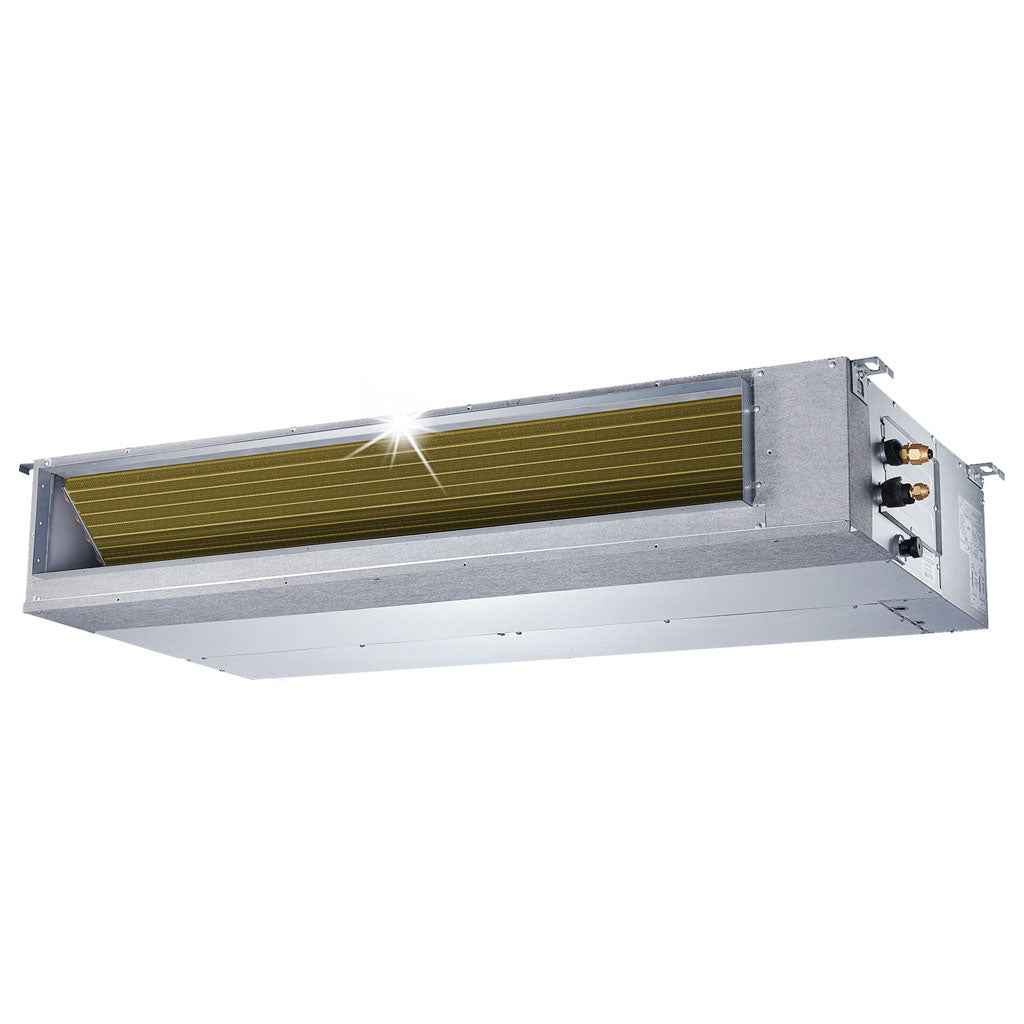

  • Slim-duct concealed design: The ceiling-mounted air handler hides above the finished ceiling.
  • High capacity: 48,000 BTU/h of cooling and 50,000 BTU/h of heating.
  • Wide operating range: Heats down to -13°F and cools in outdoor temperatures up to 131°F.
  • Inverter efficiency: 17.1 SEER2, 10.0 EER2 and 9.8 HSPF2.

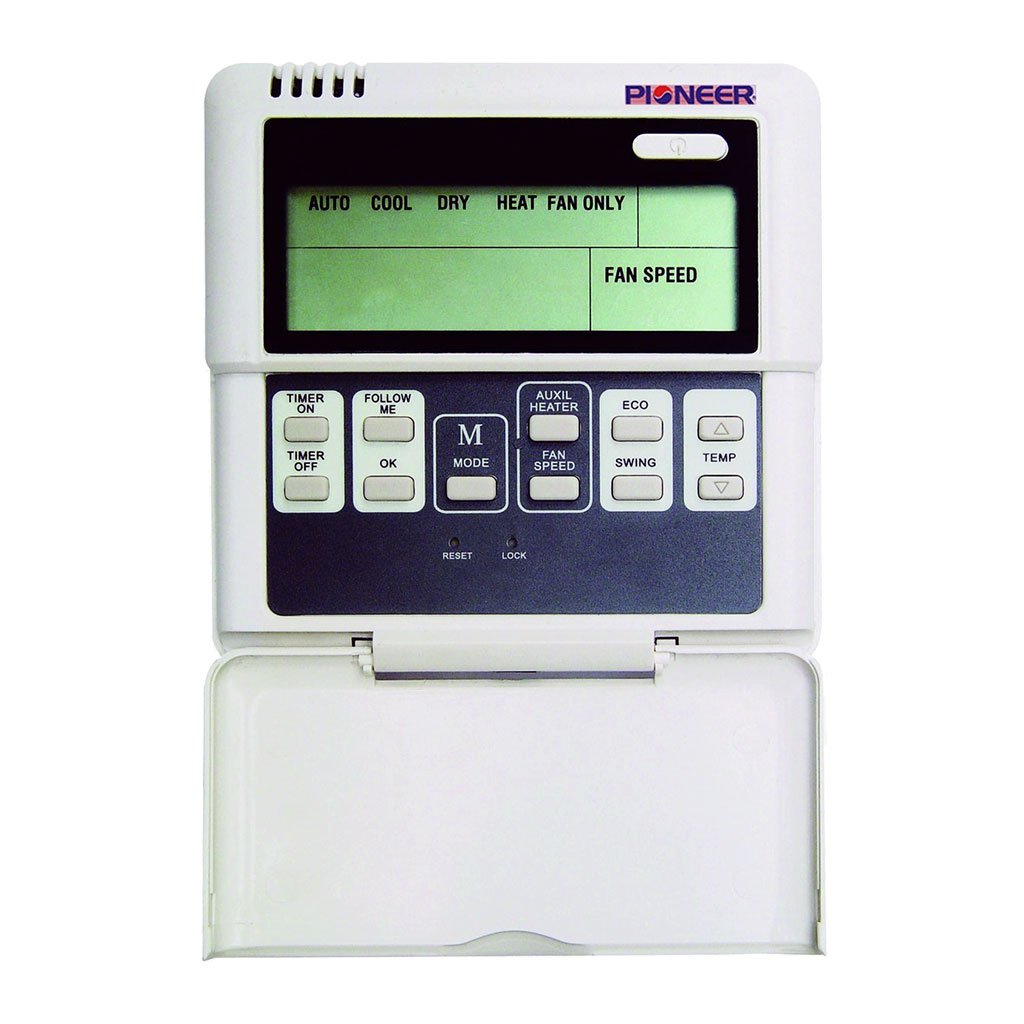

  • Remote functions: ECO, SLEEP, TURBO, timer, self-clean, MEMORY and FOLLOW ME, with washable filters.

Specifications

Cooling / Heating Capacity 48,000 / 50,000 BTU/h
Efficiency 17.1 SEER2, 10.0 EER2, 9.8 HSPF2
Power Supply 208-230V, 60Hz, 1Ph; 45A double-pole breaker
Recommended Room Size 1,400-1,800 sq ft
Indoor Unit Style Slim-duct ceiling concealed
Refrigerant R454b, factory-precharged
Indoor Sound Level 40-51 dB(A)
Air Handler (W x D x H) 47-1/4 x 29-1/2 x 11-7/8 in.
Piping 3/4 in. gas / 3/8 in. liquid
