Pioneer Quantum Ultra 48,000 BTU 230V Floor/Ceiling Ductless Mini-Split

Pioneer Quantum Ultra 48,000 BTU 230V Floor/Ceiling Ductless Mini-Split

$4,938.00
$7,059.00 $4,938.00
Sale Sold out
Shipping calculated at checkout.

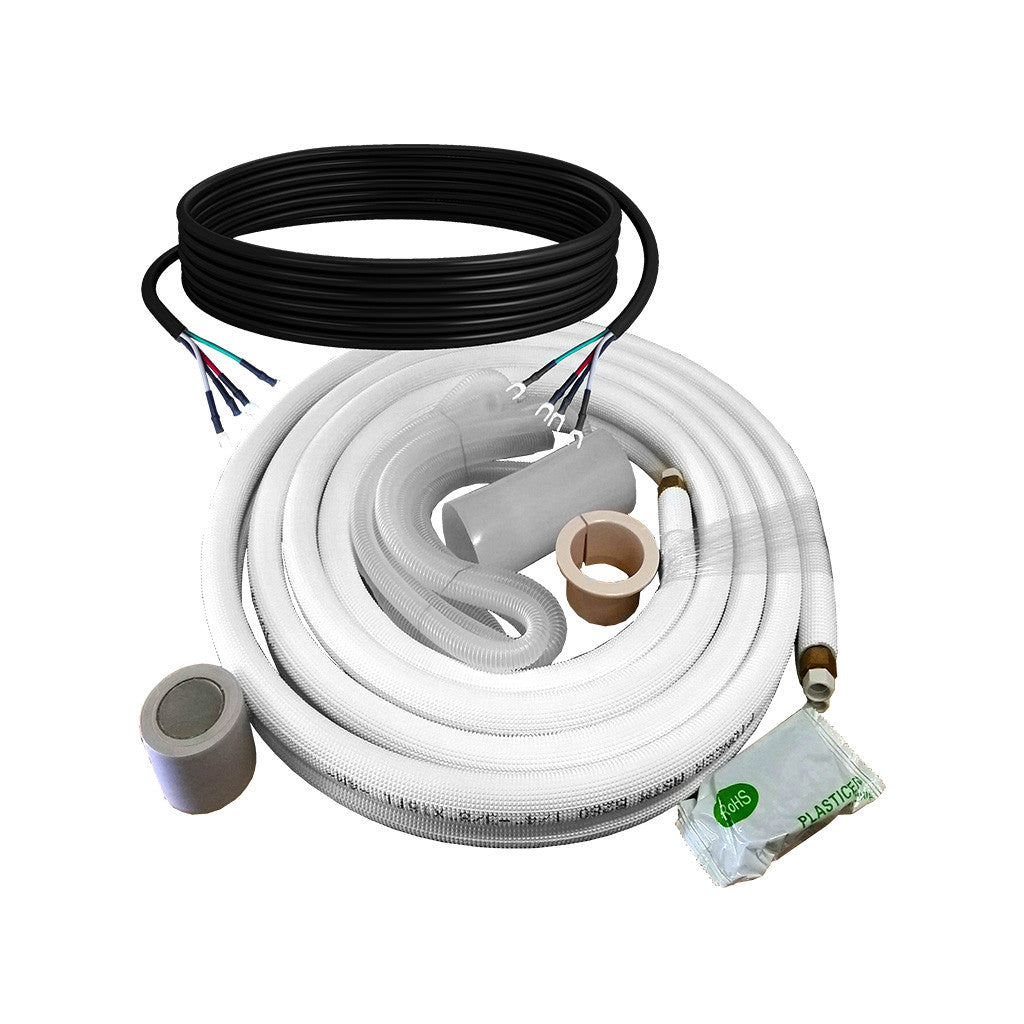

Installation Kit Options
  • Hand-curated edit
  • Tracked US delivery
  • Clear return terms

Ships in 0–3 business days · delivery in 5–12 days after shipping · 30-day returns on eligible items

View full details

Details

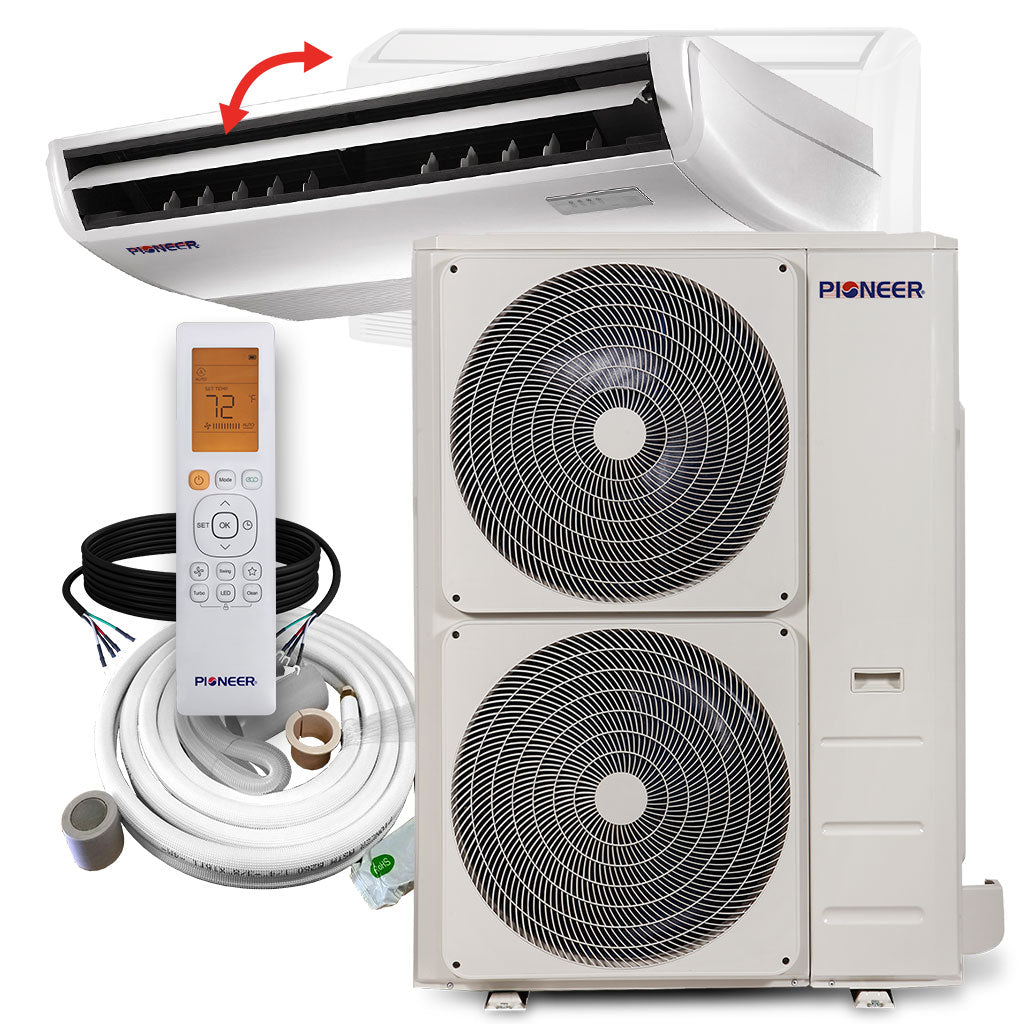

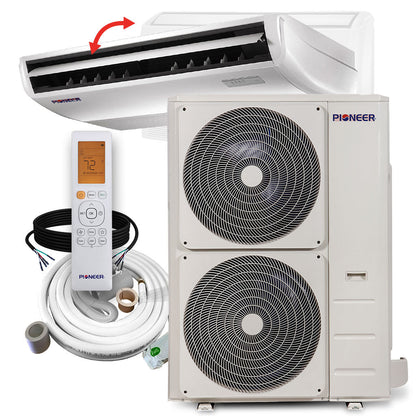

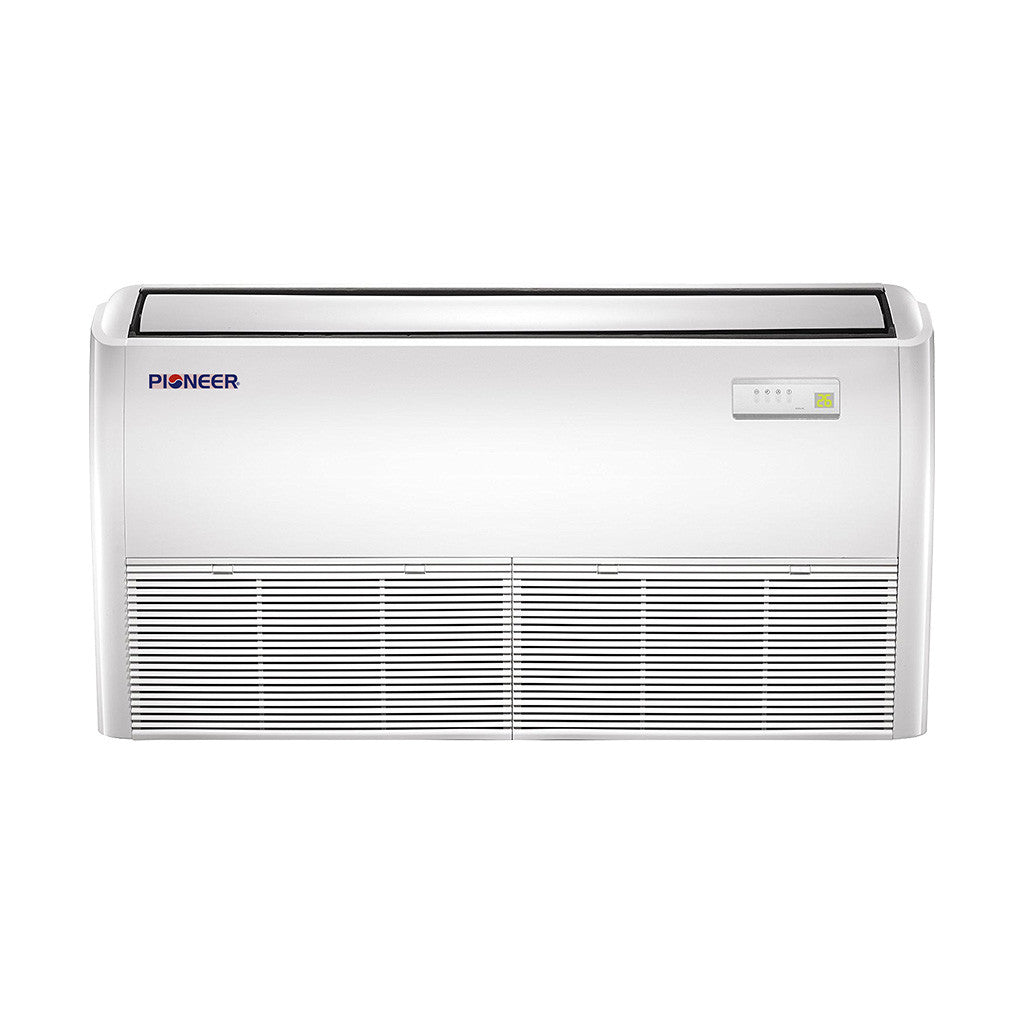

The Pioneer Quantum Ultra 48,000 BTU floor/ceiling mini split is a high-capacity ductless heat pump with a versatile indoor unit that can be ceiling-suspended or installed at floor or low-wall level. This 230V system suits large open spaces like great rooms, studios, workshops and commercial areas.

Key Features

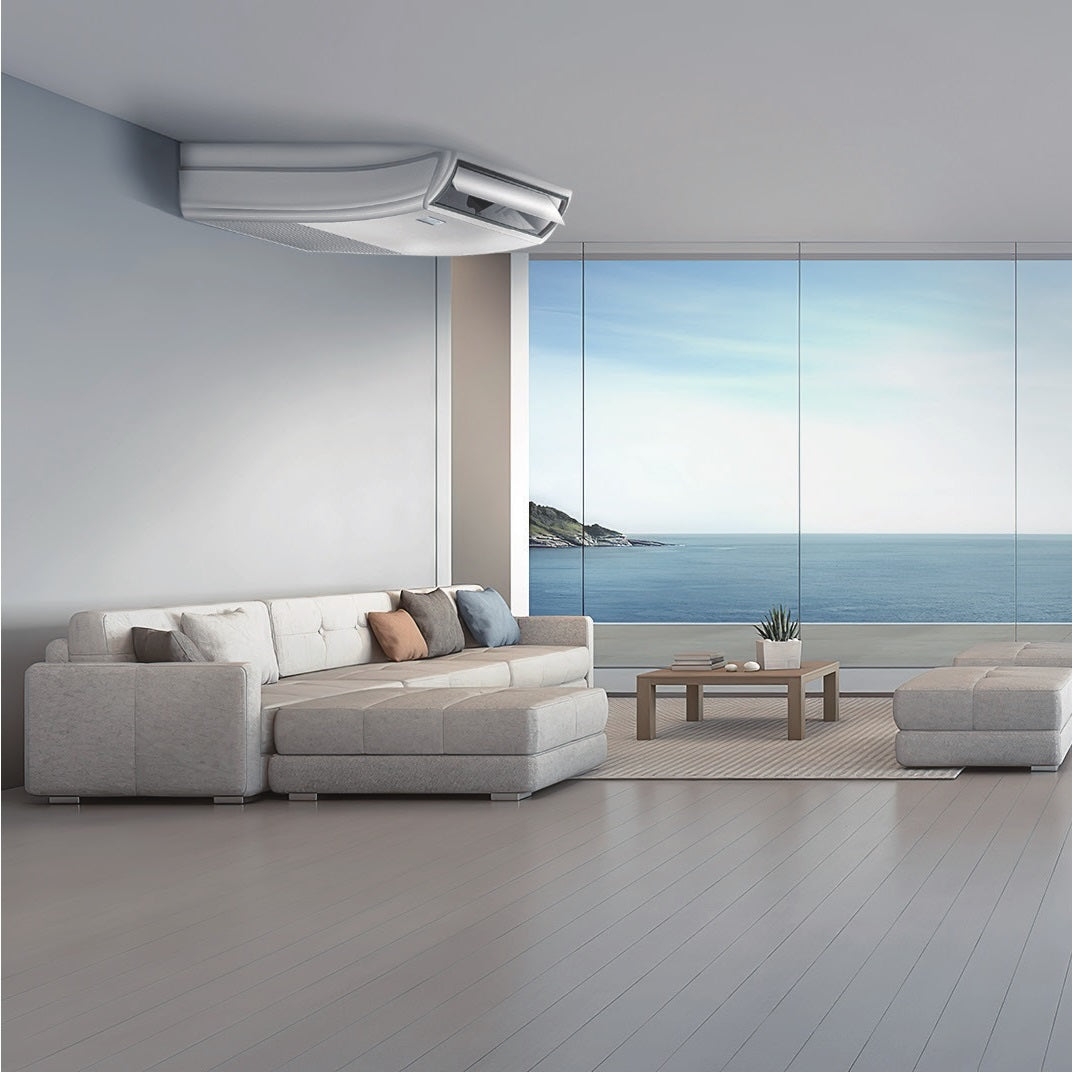

  • Flexible mounting: Floor, ceiling-suspended or low-wall installation.
  • High capacity: 48,000 BTU/h of cooling and 50,000 BTU/h of heating.
  • Ultra low ambient range: Heats down to -13°F and cools up to 131°F outdoors.
  • Efficient inverter: 19.9 SEER2, 9.5 EER2 and 12.0 HSPF2.

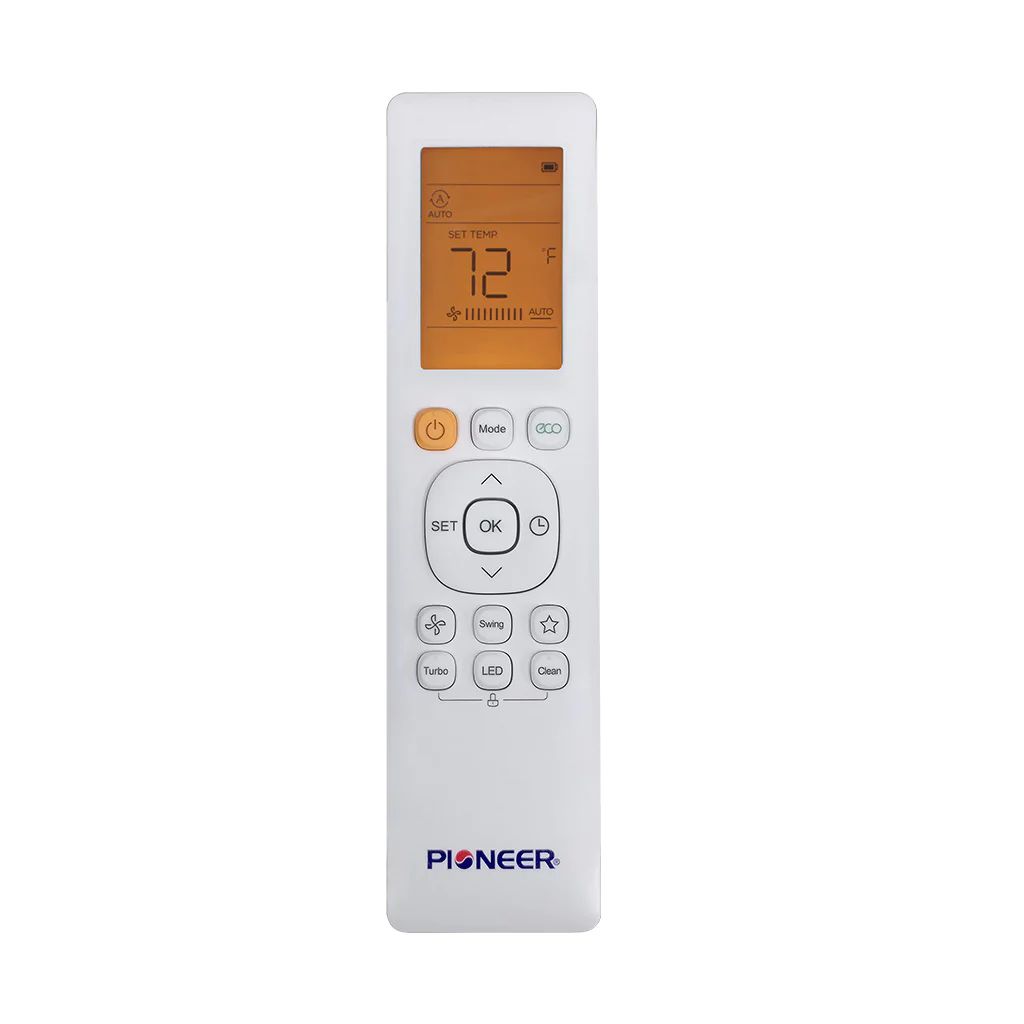

  • Remote functions: ECO, SLEEP, TURBO, timer, self-clean, MEMORY and FOLLOW ME, plus washable filters and dual drainage ports.

Specifications

Cooling / Heating Capacity 48,000 / 50,000 BTU/h
Efficiency 19.9 SEER2, 9.5 EER2, 12.0 HSPF2
Power Supply 208-230V, 60Hz, 1Ph; 45A double-pole breaker
Recommended Room Size 1,400-1,800 sq ft
Minimum Room Size 143 sq ft ceiling-suspended; 700 sq ft floor/low-wall

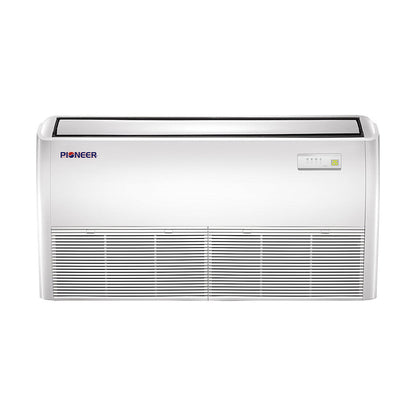

Indoor Unit Style Floor, ceiling or low-wall, ductless
Refrigerant R454b, factory-precharged
Indoor Sound Level 34-55 dB(A)
Indoor Unit (W x D x H) 65 x 9-1/4 x 26-5/8 in.
Piping 3/4 in. gas / 3/8 in. liquid
